JC099-61101 Technical Specifications

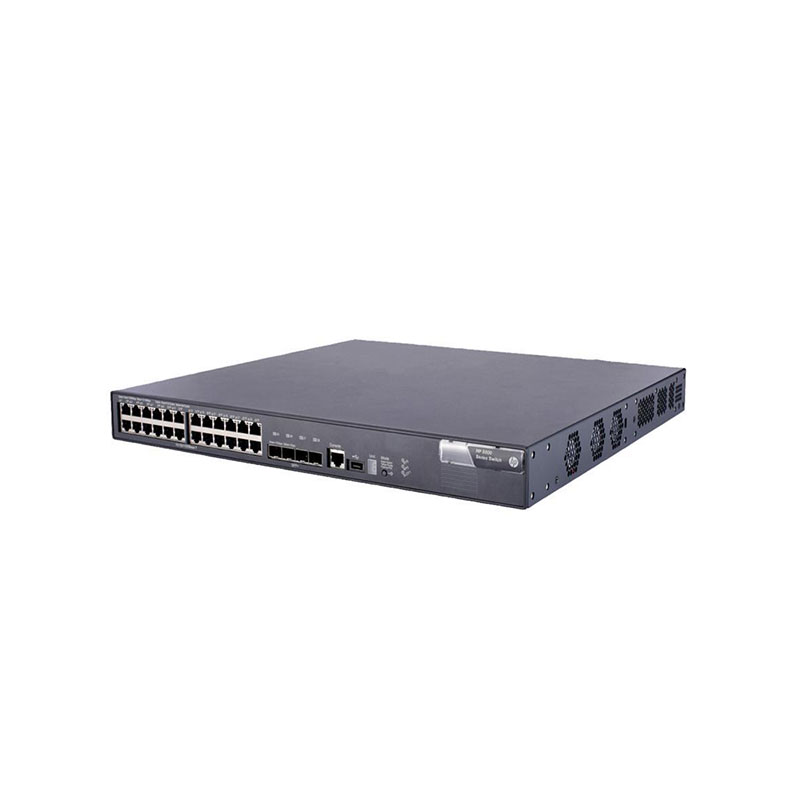

HP 5800 24G PoE+ 4SFP Layer 3 Managed Switch 24 x 10/100/1000 Ports Rack Mountable
Manufacturer HP
Manufacturer Part Number: JC099-61101
Type: 5800 Series Layer-3 Managed Ethernet Switch
Ports: 24 x 10/100/1000Base-T RJ-45 (PoE+)
Uplinks: 4 x SFP ports for fiber uplinks
Speed: 10/100/1000 Mbps per access port
Layer: Layer 3 routing with Layer 2 switching
PoE: IEEE 802.3af/802.3at PoE+ support
Management: Web interface, CLI, SNMP, ArubaOS / HP Intelligent Management
VLAN: IEEE 802.1Q VLAN tagging
QoS: Layer 3/4 traffic prioritization, 802.1p
Security: ACLs, 802.1X authentication, port security
Switching Capacity: 128 Gbps
Forwarding Rate: Up to 95 Mpps
Jumbo Frames: Supported (up to 9K)
Hot Swap: Not applicable (fixed switch)
Form Factor: Rack-mountable 1U
LEDs: Port link/activity, PoE status, system, power indicators
Redundant Power: Optional external RPS support
