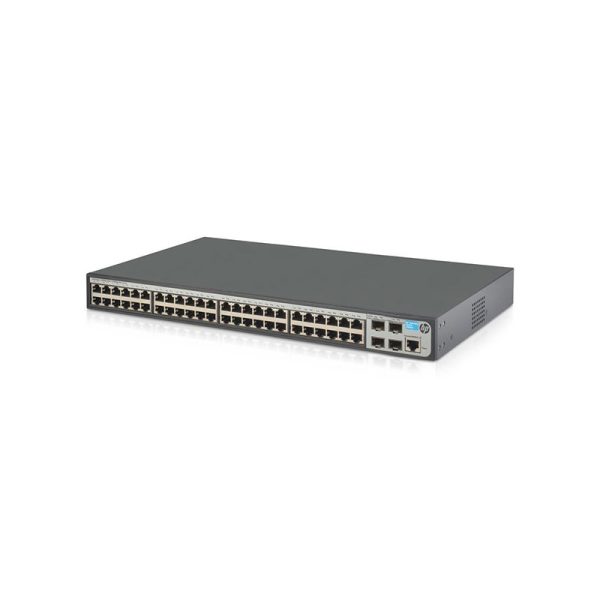

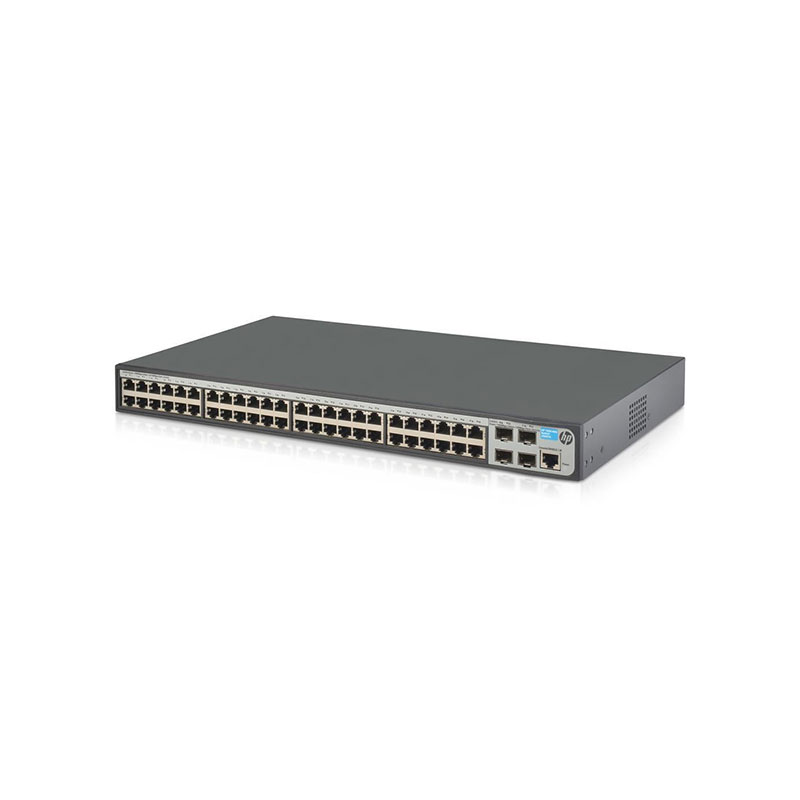

JC691A Technical Specifications
HP Switch with 1 Interface Slot 48-Ports Manageable 48 x POE+ 48 x RJ-45 5 x Expansion Slots 10/100/1000Base-T Rack-mountable
Manufacturer Part Number: JC691A
Brand Name: HPE
Product Type: Layer 3 Switch
Interfaces/Ports
Total Number of Network Ports: 48
Modular: Yes
Port/Expansion Slot Details: 48 x Gigabit Ethernet Network
2 x Gigabit Ethernet Expansion: Slot
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T
I/O Expansions
Number of Total Expansion Slots: 5
Expansion Slot Type: SFP, SFP+
Shared SFP Slot Yes
Number of SFP Slots: 2
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 4
Management & Protocols
Manageable: Yes
Power Description
Power Source: Power Supply
Redundant Power Supply Supported: Yes
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.7″
Width: 17.3″
Depth: 18.1″
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
