JC772-61001 Technical Specifications

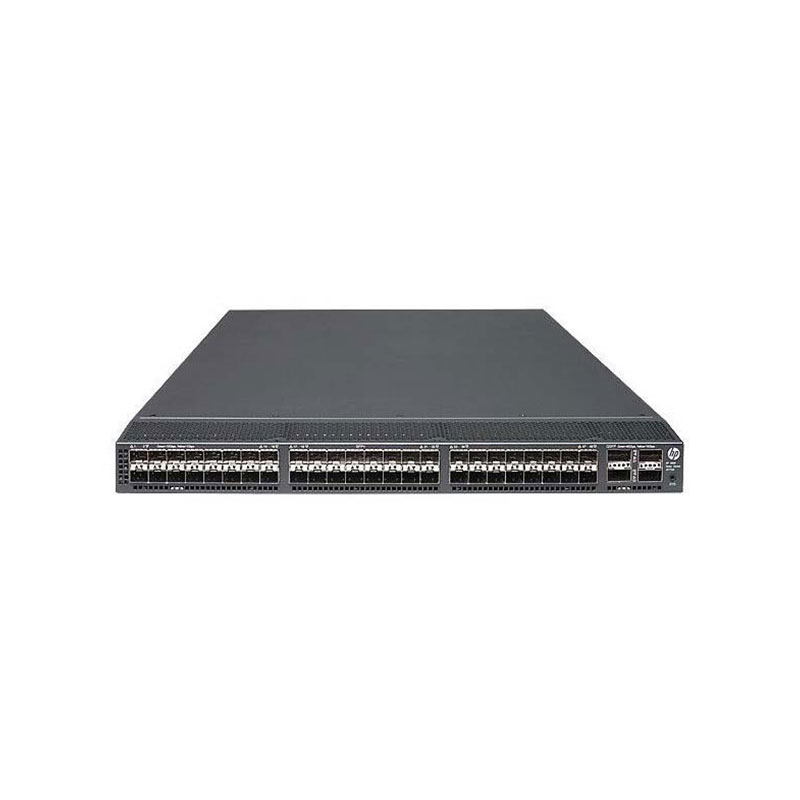

HP 5900AF-48XG-4QSFP+ 48-Ports SFP+ Rack-Mountable Switch
Manufacturer Part Number: JC772-61001
Brand Name: HP
Product Line: HP 5900 Series
Product Type: Layer 3 Managed Gigabit / 10GbE Ethernet Switch
Total Ports: 48
Gigabit / 10GbE Ports: 48 x SFP+
Uplink/Expansion Ports: 4 x QSFP+ (40GbE)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 1.28 Tbps
Forwarding Rate: 960 Mpps
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
