JC772A Technical Specifications

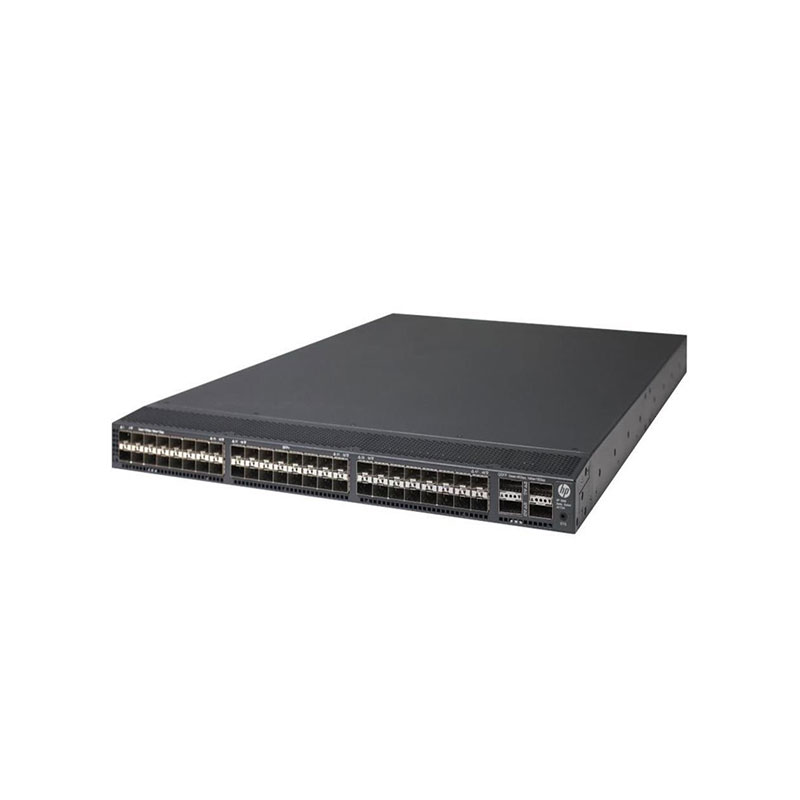

HP ProCurve 5900AF-48XG-4QSFP 48-Ports RJ-45 10 Gigabit Ethernet Switch
Manufacturer Part Number: JC772A
Brand Name: HP
Product Line: HP 5900AF Series
Product Type: Layer 3 Managed 10 Gigabit Ethernet Switch
Total Ports: 48
10 Gigabit Ethernet Ports: 48 x 10GBase-T RJ-45
Uplink/Expansion Ports: 4 x QSFP+ (40GbE)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 1.28 Tbps
Forwarding Rate: 960 Mpps
MAC Address Table: 128,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3
RMON Monitoring: Supported
Port Mirroring: Port and VLAN Based
Stacking Capability: Supporte
