JC858A Technical Specifications

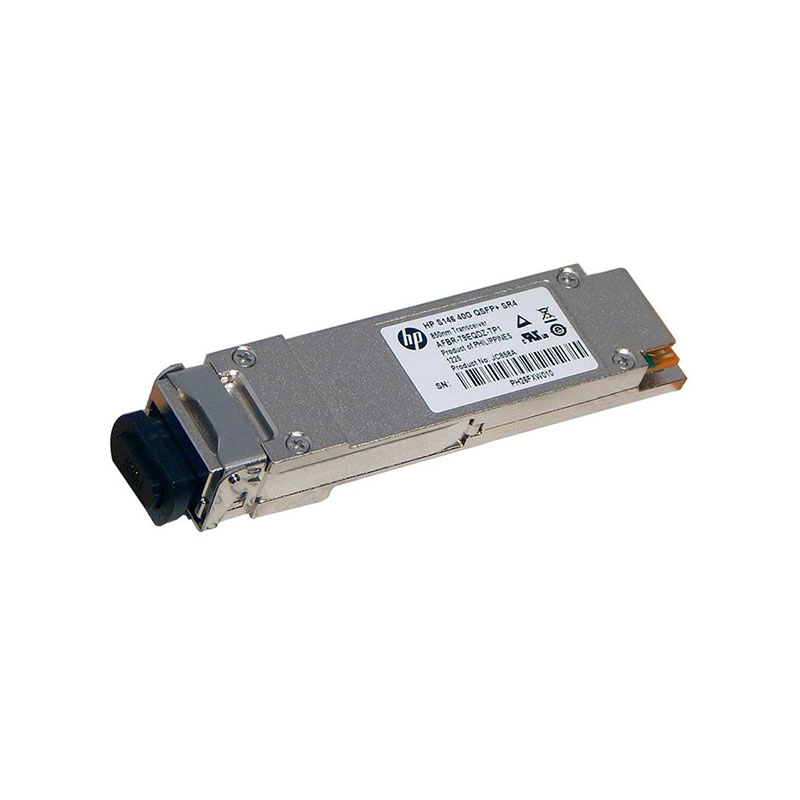

HP 40Gbps 40GBase-SR4 Multi-mode Fiber 150m 850nm MPO Connector QSFP+ Transceiver Module
Manufacturer Part Number: JC858A
Brand Name: HP
Product Name: S146 QSFP+ Transceiver Module
Product Type: QSFP+ Transceiver
Data Rate: 40Gbps
Transceiver Type: 40GBase-SR4 (Short Range)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: MPO-12
Maximum Reach: Up to 150m (OM4) / 100m (OM3)
Form Factor: QSFP+
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 8 (parallel MMF)
Compatibility: HP networking switches, routers, and data center equipment
Application: High-speed data center, cloud, and enterprise backbone connectivity
Standards Compliance: IEEE 802.3ba, QSFP+ MSA
Backward Compatibility: Supports breakout to 4x10GbE using MPO-LC harness cables
Operating Temperature: 0°C to 70°C
Low Power Consumption: Energy-efficient optical design
Installation: Plug-and-play module
