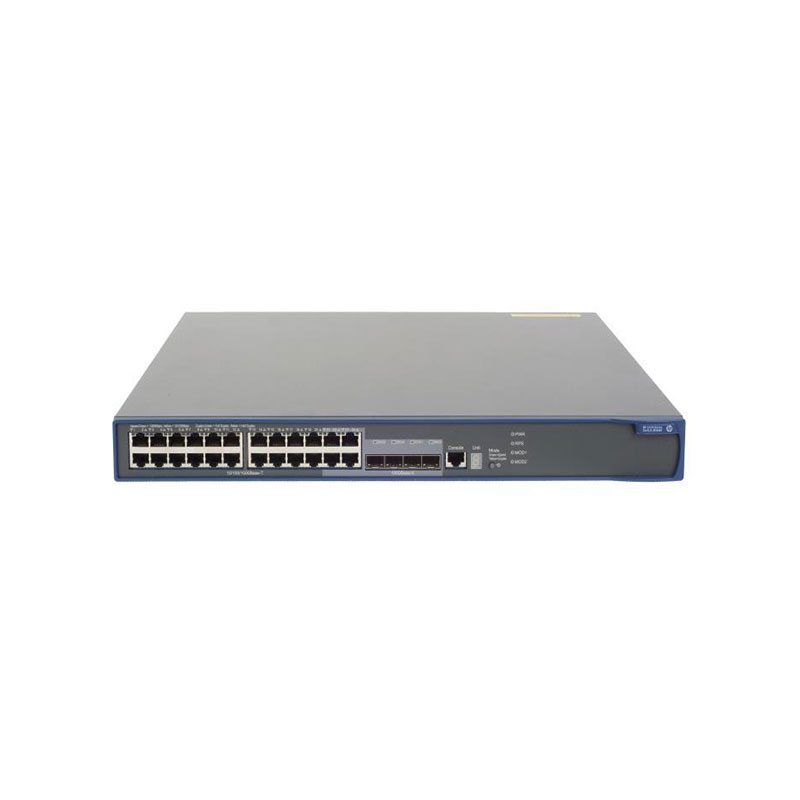

JE068A Technical Specifications
HP 24-Ports Layer 4 Managed Stackable Switch
Manufacturer Part Number: JE068A
Brand Name: HP
Product Line: HP ProCurve 2900 Series
Product Type: Layer 4 Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x Dual-Personality (RJ-45 or SFP)
Layer Support: Layer 2 / Layer 3 / Layer 4
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 Supported
Dynamic Routing: RIP, OSPF Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DiffServ
Security: IEEE 802.1X, ACLs, Port Security
