JG961-61001 Technical Specifications

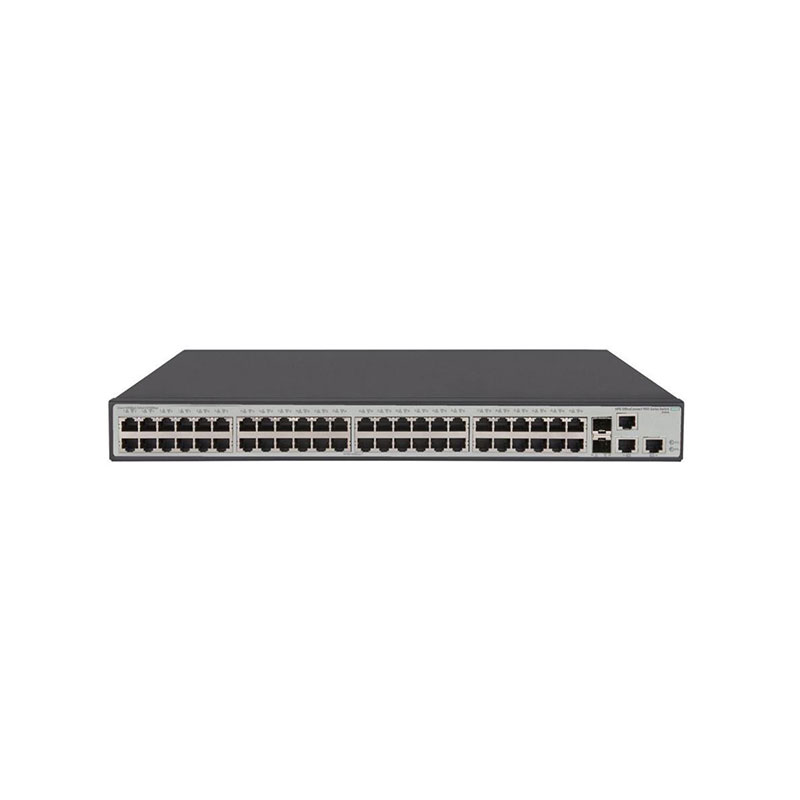

HP 1950 48-Ports 10/100Base-TX RJ-45 Manageable Layer3 Rack-mountable Ethernet Swith with 2x SFP+ Ports and 2x Gigabit Ethernet Network Ports
Manufacturer HP
Manufacturer Part Number: JG961-61001
Series: HP 1950 Switch Series
Type: Layer 3 Managed Ethernet Switch
Ports: 48 x 10/100/1000Base-T RJ-45
Uplinks: 2 x 10GbE SFP+ ports, 2 x 10GbE RJ-45 ports
Speed: 10/100/1000 Mbps (RJ-45), 10Gbps (uplinks)
Layer: Layer 2 switching with Layer 3 static routing
Management: Web GUI, CLI, SNMP, RMON, IMC support
VLAN: IEEE 802.1Q VLAN tagging, up to 4094 VLANs
QoS: Advanced traffic prioritization, 802.1p, DSCP, rate limiting
Security: 802.1X, RADIUS, TACACS+, ACLs, port security
Switching Capacity: 176 Gbps
Forwarding Rate: 131 Mpps
Jumbo Frames: Up to 9K supported
Stacking: Supported via 10GbE ports, up to 4 units
Hot Swap: Not applicable (fixed configuration)
Form Factor: 1U rack-mountable
LEDs: System, power, fault, link/activity, speed indicators
