JH323A Technical Specifications

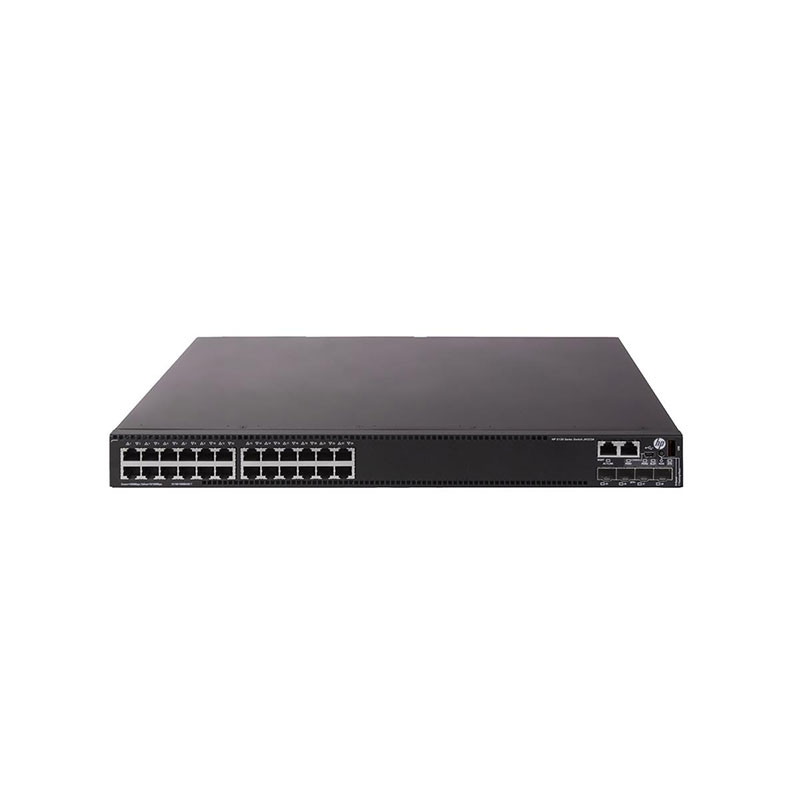

HP ProCurve 5130 HI-24G 4SFP+ 1-slot Managed Switch
Manufacturer Part Number: JH323A
Brand Name: HP
Product Line: HP 5130 HI Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x 10GbE SFP+
Expansion Slots: 1 (for additional module)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 176 Gbps
Forwarding Rate: 130 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Dynamic Routing: RIP, OSPF, BGP Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DiffServ
Security: IEEE 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP v1/v2c/v3
