JH329-61001 Technical Specifications

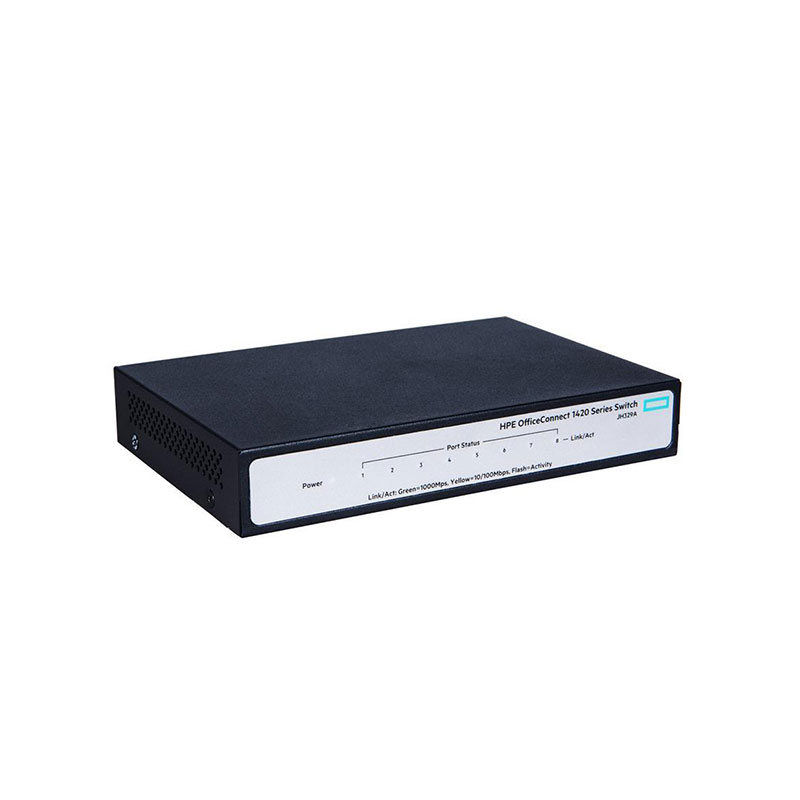

HPE Office Connect Ethernet Switch 1420 8G 8 Ports L2 Rack Mountable
Manufacturer Part Number: JH329-61001
Brand Name: HPE
Product Line: HPE 1420 Series
Product Type: Layer 2 Unmanaged Gigabit Ethernet Switch
Total Ports: 8
Gigabit Ethernet Ports: 8 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: Not Available
Layer Support: Layer 2
Switching Capacity: 16 Gbps
Forwarding Rate: 11.9 Mpps
MAC Address Table: 4,000 entries
VLAN Support: Not Supported
Spanning Tree Protocols: Not Supported
Static Routing: Not Supported
Link Aggregation: Not Supported
Flow Control: IEEE 802.3x
Quality of Service: Not Supported
Security: Basic Port Security
Management: Unmanaged (Plug-and-Play)
RMON Monitoring: Not Supported
Port Mirroring: Not Supported
Stacking Capability: Not Supported
LED Indicators: Power, Link/Activity
Form Factor: 1U Rackmount
Mounting Options: Rackmount / Desktop
Power Supply: Internal AC
Power Consumption: ~10W
