JH380A Technical Specifications

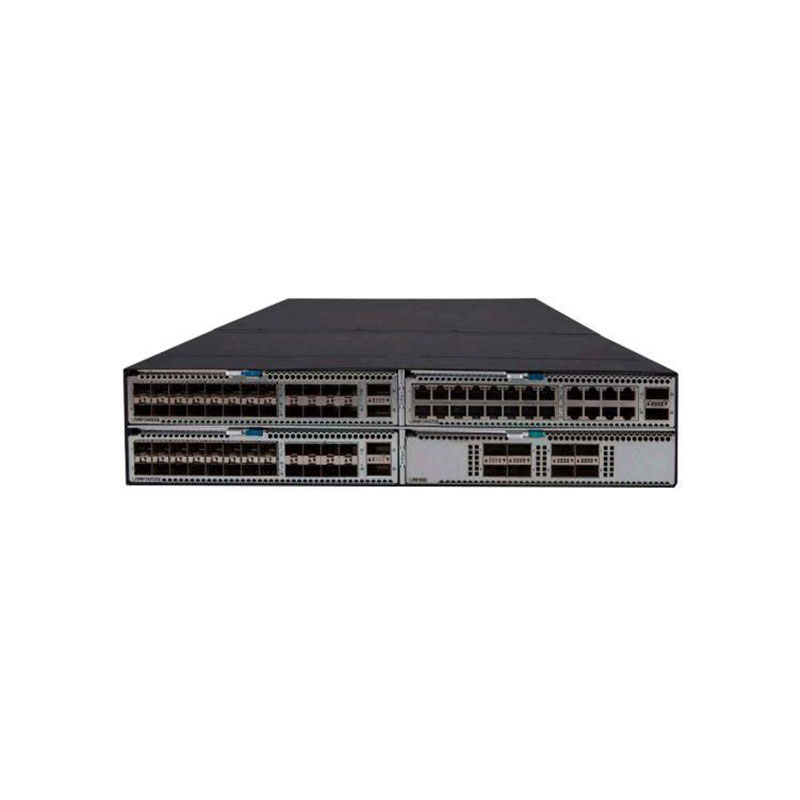

HPE FlexFabric 5930 32 x Ports 40GBas-SR4 + 2 Switch
Manufacturer Part Number: JH380A
Brand Name: HPE
Product Line: FlexFabric 5930 Series
Product Type: Managed 40GbE Data Center Switch
Total Ports: 34
40 Gigabit Ethernet Ports: 32 x QSFP+ (40GbE SR4)
Additional Ports: 2 x Expansion Slots (for modules)
Switching Capacity: 2.56 Tbps
Forwarding Rate: 1,428 Mpps
Layer Support: Layer 2 / Layer 3 / Data Center features
MAC Address Table: 288,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static, RIP, OSPF, BGP, IPv4/IPv6
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: ACLs, uRPF, 802.1X, DHCP Snooping
Management: CLI, Web UI, SNMP v1/v2c/v3, RMON, sFlow
Port Mirroring: Supported
