JL253-61001 Technical Specifications

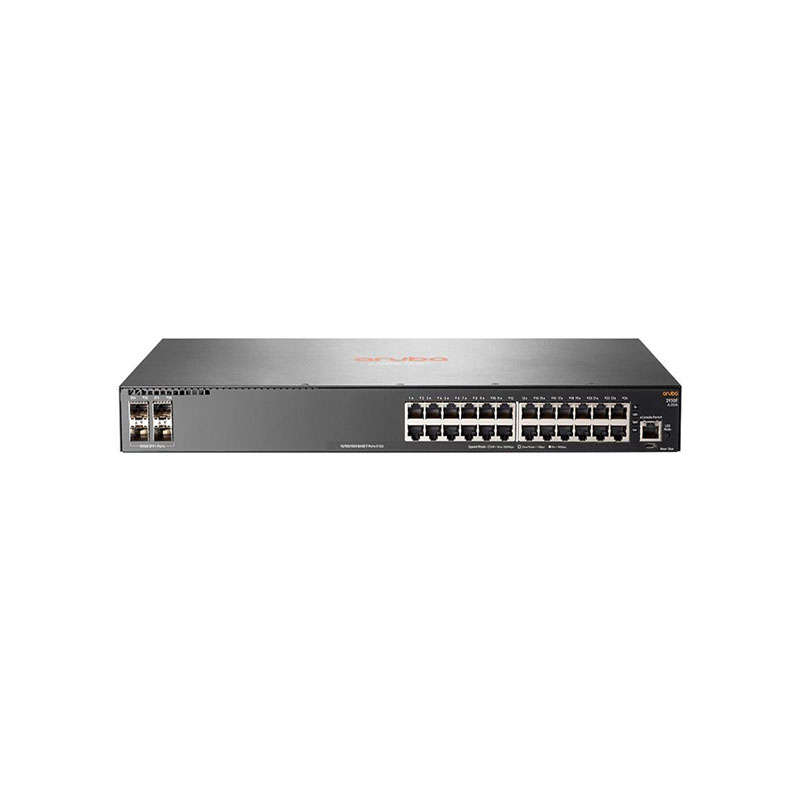

HP 24G 4SFP+ 24-Ports 10/100/1000Base-TX Rj-45 Manageable Layer3 Rack-mountable Switch
Manufacturer Part Number: JL253-61001
Brand Name: HP
Product Line: HP 2530 / 2920 Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink/Expansion Ports: 4 x 10GbE SFP+
Layer Support: Layer 2 / Layer 3
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4 / IPv6 Supported
Dynamic Routing: RIP, OSPF Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p, DSCP
Security: IEEE 802.1X, ACLs, Port Security, DHCP Snooping
