JL261-61101 Technical Specifications

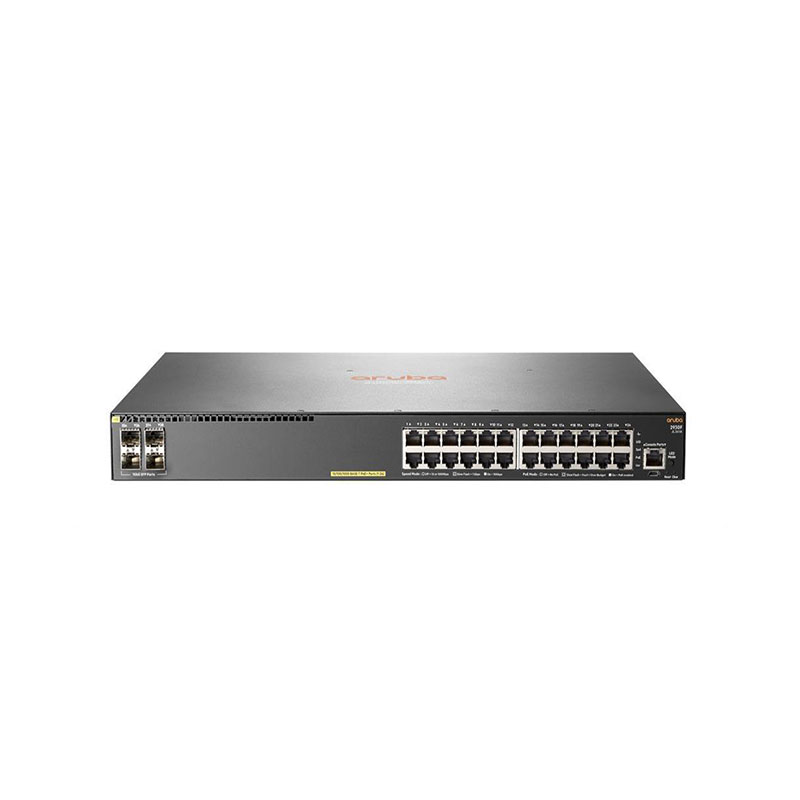

HP 24 x Ports 10/100/1000 PoE+ + 4 x Ports Gigabit SFP Uplink Rack-Mountable 1U Layer 3 Managed Gigabit Ethernet Network Switch
Manufacturer Part Number: JL261-61101
Brand Name: HP Aruba
Product Line: Aruba 2930F Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 28
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45 (PoE+)
Uplink Ports: 4 x Gigabit SFP
Layer Support: Layer 2 and Layer 3 (Static & RIP routing)
Switching Capacity: 128 Gbps
Forwarding Rate: 95.2 Mpps
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Link Aggregation: IEEE 802.3ad LACP (up to 8 links per group)
