JL280-61101 Technical Specifications

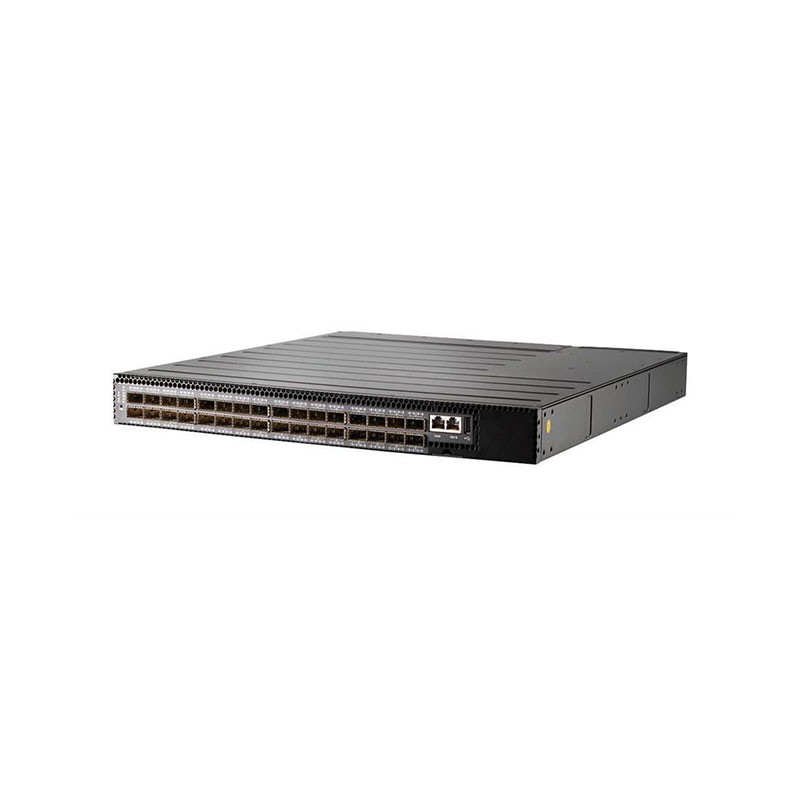

HP Series 32 x QSFP28 x86 ONIE Ports 100GBase-X Layer 3 Managed Back-to-Front Air Flow Gigabit Ethernet Network Switch
Manufacturer Part Number: JL280-61101
Brand Name: HP
Product Type: Layer 3 Managed 100 Gigabit Ethernet Switch
Total Ports: 32
100 Gigabit Ethernet Ports: 32 x QSFP28 (100GBase-X)
Layer Support: Layer 2 / Layer 3
Switching Capacity: 6.4 Tbps
Forwarding Rate: 2,000 Mpps
MAC Address Table: 288,000 entries
VLAN Support: 4,094 VLANs
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4/IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP, MLAG
Flow Control: IEEE 802.3x
Quality of Service: 8 Priority Queues, IEEE 802.1p
Security: IEEE 802.1X, ACLs, Port Security
Management: Web GUI, CLI, SNMP v1/v2c/v3, REST API
RMON Monitoring: Supported
Port Mirroring: Supported
Stacking Capability: Aruba VSX Supported
LED Indicators: Power, Status, Link/Activity, Fan, PSU
Form Factor: 1U Rackmount
Mounting Options: Rackmount
