JL320-61101 Technical Specifications

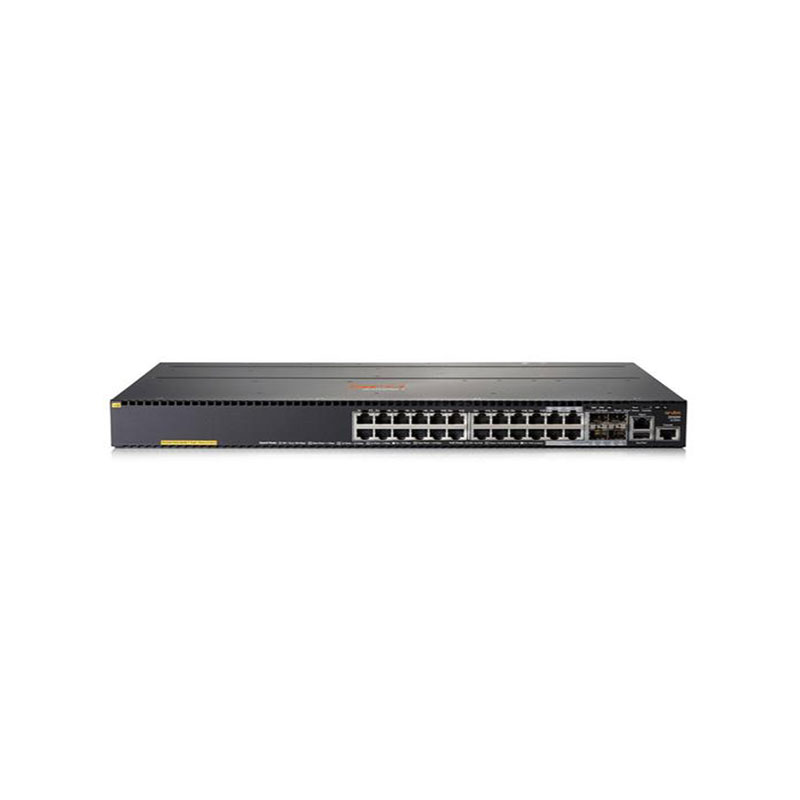

HP Aruba 2930M 20x RJ45 PoE+ 1 Slot L3 GbE Switch
Manufacturer Part Number: JL320-61101
Brand Name: HP Aruba
Product Line: Aruba 2930M Series
Product Type: Layer 3 Managed Gigabit Ethernet Switch
Total Ports: 20
Gigabit Ethernet Ports: 20 x 10/100/1000Base-T RJ-45 PoE+
Expansion Slot: 1 x Modular Slot
Layer Support: Layer 2 / Layer 3
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
MAC Address Table: 16,000 entries
VLAN Support: 4,094 VLANs
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Static Routing: IPv4/IPv6 Supported
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: 8 Queues, 802.1p, DSCP
Security: 802.1X, ACLs, Port Security, RADIUS/TACACS+
Management: Web GUI, CLI, SNMP v1/v2c/v3, REST API
RMON Monitoring: Supported
Port Mirroring: Supported
Stacking Capability: Aruba VSF Stacking
