JL381-61001 Technical Specifications

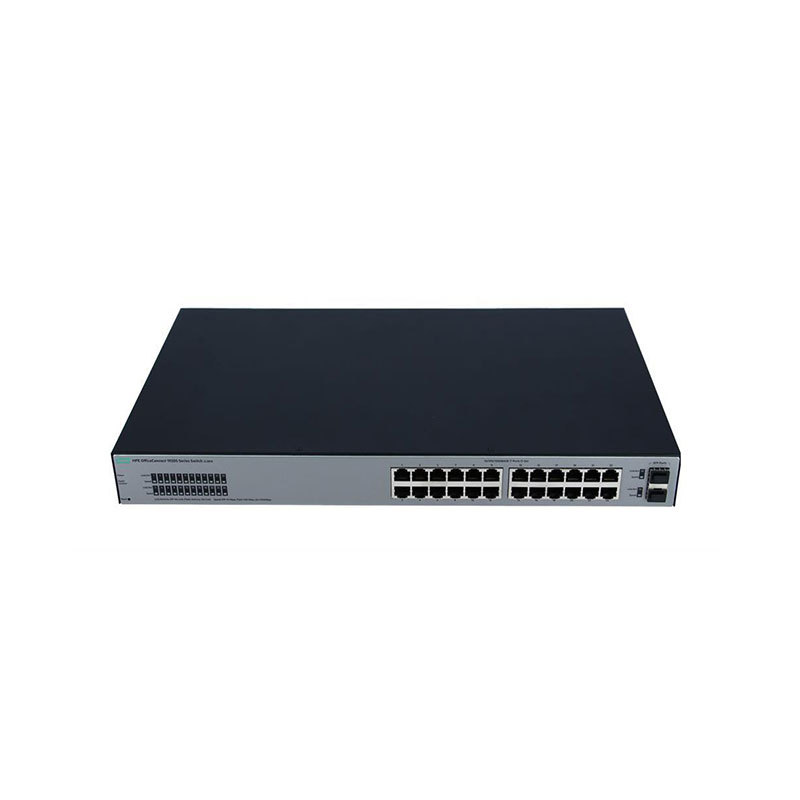

HP OfficeConnect 1920S 1920S 24G 24-P RJ-45 Switch
Manufacturer Part Number: JL381-61001
Brand Name: HPE
Product Line: OfficeConnect 1920S Series
Product Type: Managed Gigabit Ethernet Switch
Total Ports: 24
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 2 x Combo Gigabit SFP
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 8,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static IPv4 / IPv6
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
PoE Support: Not available (Non-PoE model)
Management: Web UI, CLI, SNMP, RMON
Port Mirroring: Supported
