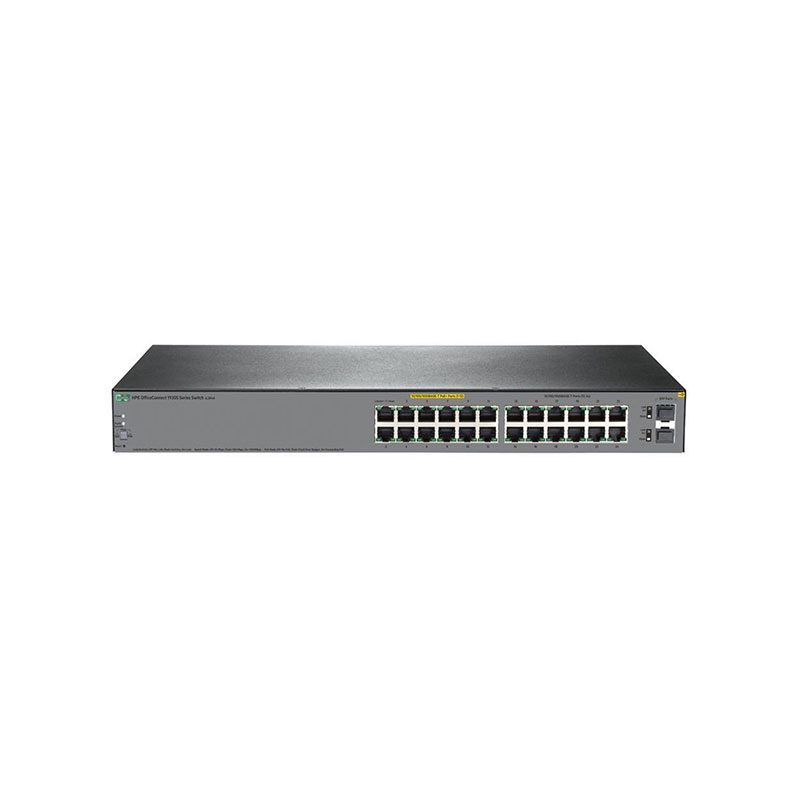

JL384-61001 HP 24-P PoE+ RJ-45 + 2-P SFP Switch

JL384-61001 Overview

The HP JL384-61001 is a 24-port Gigabit Ethernet Layer 3 managed switch designed for enterprise access networks, small to medium business deployments, and branch office environments. It features 24 RJ-45 10/100/1000Base-T PoE+ ports, providing both data and power to devices such as IP phones, wireless access points, and security cameras, along with 2 SFP uplink ports for flexible 1GbE fiber or copper connections to aggregation or core switches.The switch supports advanced Layer 2 and Layer 3 features, including VLANs, link aggregation (LACP), QoS, ACLs, 802.1X authentication, and static routing, enabling secure, segmented, and efficient network traffic management. It also provides stacking capabilities for simplified network scalability and centralized management.

Availability: In Stock
SKU:JL384-61001
Brand:

JL384-61001 Technical Specifications

HP 24-P PoE+ RJ-45 + 2-P SFP Switch

Manufacturer Part Number: JL384-61001
Brand Name: HP
Product Type: Managed Gigabit Ethernet PoE+ Switch
Total Ports: 26
Gigabit Ethernet Ports: 24 x 10/100/1000Base-T RJ-45 PoE+
Uplink Ports: 2 x 1G SFP
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 16,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Routing: Static IPv4 / IPv6
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
PoE Support: PoE+ (195W Power Budget)
Management: Web UI, CLI, SNMP, RMON
Port Mirroring: Supported
