JL385-61001 Technical Specifications

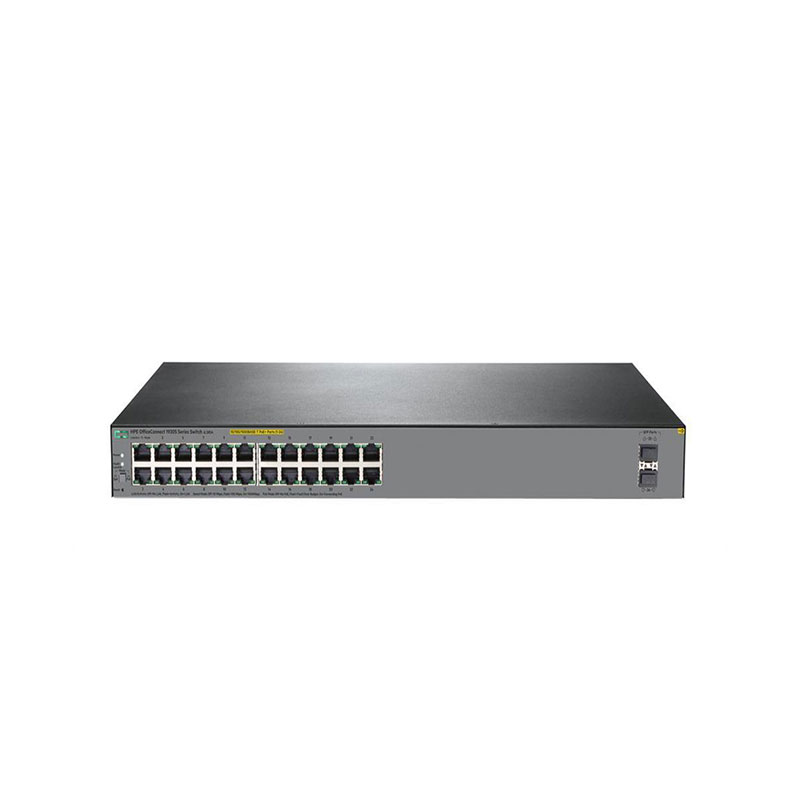

HP 24-Ports RJ-45 10/100/1000Base-T PoE Manageable Layer 3 Rack-mountable with Gigabit SFP Switch
Manufacturer: HP
Manufacturer Part Number: JL385-61001
Type: Managed Gigabit Ethernet Switch
Ports: 24 x 10/100/1000Base-T RJ-45
Uplink Ports: 2 x 10GbE SFP+ + 2 x 10GbE RJ-45
PoE: Supported, IEEE 802.3af/at PoE+
Layer: Layer 3 Lite (static routing)
Management: Web-based GUI, CLI, SNMP, RMON
VLAN: IEEE 802.1Q VLAN tagging, up to 4K VLANs
QoS: 802.1p, DSCP, traffic prioritization, shaping
Security: Port security, DHCP snooping, ACLs, 802.1X authentication
Switching Capacity: 128 Gbps
Forwarding Rate: 95 Mpps
Jumbo Frames: Up to 9K bytes
Stacking: IRF (Intelligent Resilient Framework) virtual stacking up to 4 units
Multicast: IGMP snooping v1/v2/v3, MLD
Form Factor: 1U rack-mountable
LEDs: Power, PoE, link/activity, status
