JL587-61001 Technical Specifications

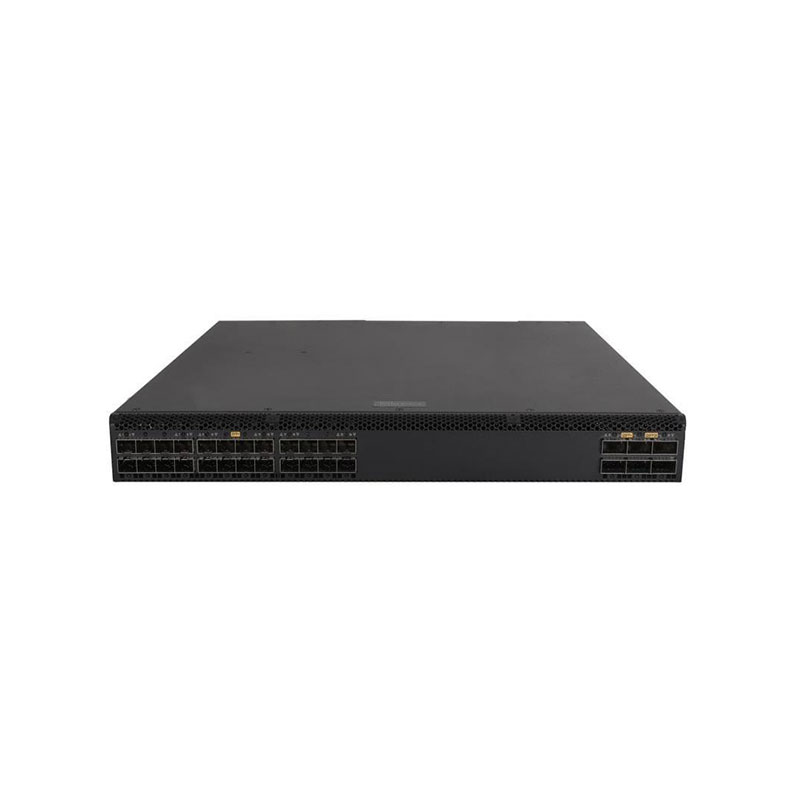

HP Series 5710 24SFP+ 24 x SFP+ Ports 10GBase-X + 6 x QSFP+ Ports + 2 x QSFP28 Ports Layer 3 Managed Rack-mountable Gigabit Ethernet Network Switch
Manufacturer Part Number: JL587-61001
Brand Name: HP
Product Line: HP 5710 Series
Product Type: Layer 3 Managed Ethernet Switch
Total Ports: 32
Port Type: 24 x SFP+ (10GbE) + 6 x QSFP+ (40GbE) + 2 x QSFP28 (100GbE)
Layer Support: Layer 3
Switching Capacity: 2.4 Tbps
Forwarding Rate: 1,488 Mpps
MAC Address Table: 128,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing: Static & dynamic IPv4/IPv6, OSPF, BGP, VRF
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: Advanced QoS with 8 queues
Security: 802.1X, ACLs, Port Security, MACsec
Management: Web GUI, CLI, SNMP, REST API
Stacking Capability: Supported (IRF)
Form Factor: 1U Rack-mountable
