JL624-61001 Technical Specifications

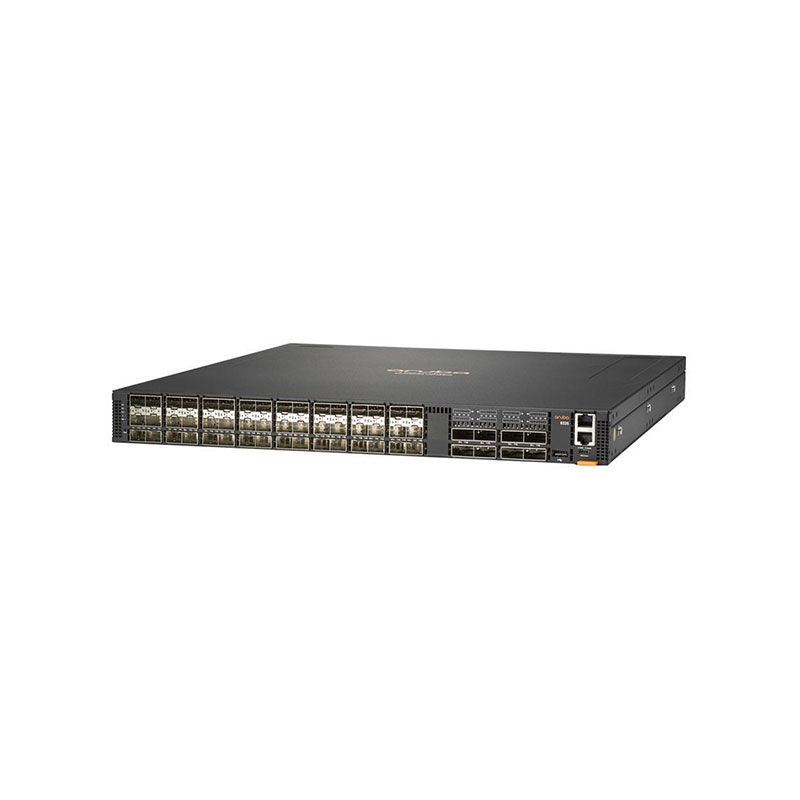

HP 48 x SFP28 Ports 25GBase-X + 8 x QSFP28 Layer 3 Managed Gigabit Ethernet Network Switch
Manufacturer Part Number: JL624-61001
Brand Name: HP
Product Type: Layer 3 Managed Ethernet Switch
Total Ports: 56
Port Type: 48 x SFP28 (25GbE) + 8 x QSFP28 (100GbE)
Layer Support: Layer 3
Switching Capacity: 4 Tbps
Forwarding Rate: 2,976 Mpps
MAC Address Table: 128,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing: Static & dynamic IPv4/IPv6, OSPF, BGP, VRF
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: Advanced QoS, 8 queues
Security: 802.1X, ACLs, Port Security, MACsec
Management: Web GUI, CLI, SNMP, REST API
Stacking Capability: Supported (IRF)
Form Factor: 1U Rack-mountable
Power Supply: Dual hot-swappable AC PSU
Cooling: Front-to-back airflow
Compliance: RoHS
