JL624-61101 Technical Specifications

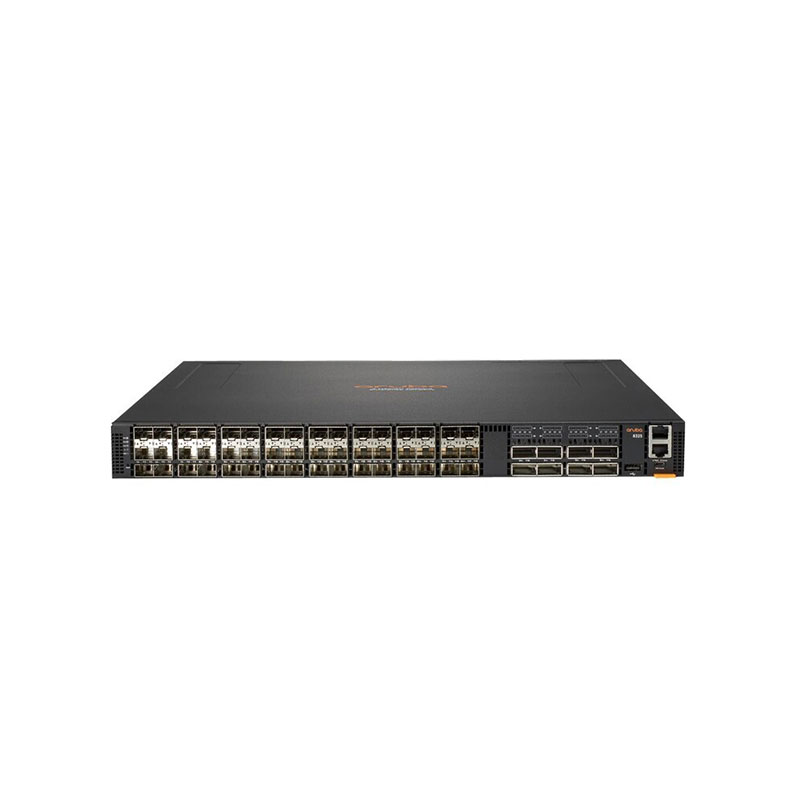

HPE Aruba 8320 48 -P SFP28 + 8 -P QSFP28 L3 Switch
Manufacturer Part Number: JL624-61101
Brand Name: HPE Aruba
Product Line: Aruba 8320 Series
Product Type: Layer 3 Managed Ethernet Switch
Total Ports: 56
Port Type: 48 x SFP28 (25GbE) + 8 x QSFP28 (100GbE)
Layer Support: Layer 3
Switching Capacity: 4 Tbps
Forwarding Rate: 2,976 Mpps
MAC Address Table: 128,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: IEEE 802.1D, 802.1w, 802.1s
Routing: Static & dynamic IPv4/IPv6, OSPF, BGP, VRF
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service: Advanced QoS, 8 queues
Security: 802.1X, ACLs, Port Security, MACsec
Management: Web GUI, CLI, SNMP, REST API
Stacking Capability: VSX supported
Form Factor: 1U Rack-mountable
Power Supply: Dual hot-swappable AC PSU
Cooling: Front-to-back airflow
Compliance: RoHS
