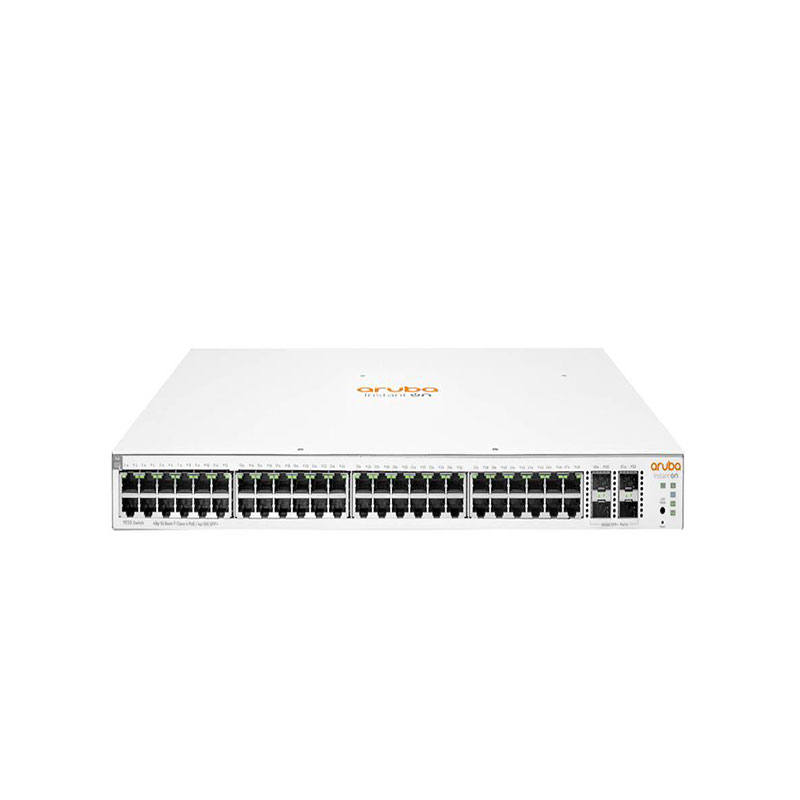

JL686-61001 HP Instant On 1930 48g Class 4 Poe 4sfp/sfp+ 370w Switch

JL686-61001 Overview

The HP JL686-61001 Instant On 1930 Switch is a 48-port Gigabit Ethernet PoE+ managed switch designed for small to medium businesses, offering enterprise-class features with simple management.It provides 48 × RJ-45 Gigabit Ethernet ports with Class 4 PoE+ support, delivering up to 370W total PoE power budget to power devices such as access points, IP phones, and security cameras directly through Ethernet cables. Alongside these, it includes 4 × SFP/SFP+ uplink ports, which support both 1GbE and 10GbE connectivity, ensuring flexibility for fiber uplinks or stacking with other switches.As a smart managed Layer 2+ switch, it supports VLANs, link aggregation, static routing, and advanced security functions such as 802.1X authentication and access control lists (ACLs).

Availability: In Stock
SKU:JL686-61001
Brand:

JL686-61001 Technical Specifications

HP Instant On 1930 48g Class 4 Poe 4sfp/sfp+ 370w Switch

Manufacturer: HP
Manufacturer Part NUmber: JL686-61001
Type: Layer 2+ Smart Managed PoE Switch
Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x SFP/SFP+ (1GbE/10GbE)
PoE: 370W total power budget, IEEE 802.3af/at (Class 4 PoE+)
Layer: Layer 2+ switching with static routing
Management: Web GUI, mobile app, SNMP, cloud-managed via Instant On portal
VLAN: IEEE 802.1Q VLAN tagging, up to 256 VLANs
QoS: 802.1p prioritization, DSCP, traffic shaping
Security: Access control, port security, DHCP snooping, 802.1X authentication
Switching Capacity: 176 Gbps
Forwarding Rate: 130.9 Mpps
Jumbo Frames: Up to 9K bytes
Stacking: Virtual stacking (up to 4 switches) via cloud/app
Multicast: IGMP snooping v1/v2/v3
Form Factor: 1U rack-mountable
