JL720-61201 Technical Specifications

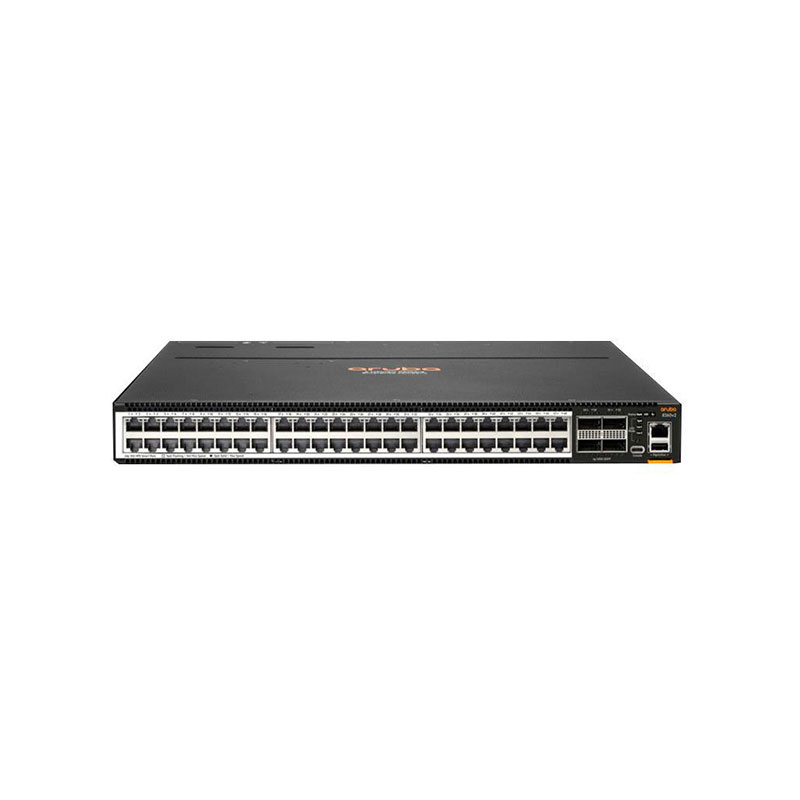

HPE Aruba 8360-48XT4C 48x Ports Network Switch
Manufacturer Part Number: JL720-61201
Brand Name: HPE Aruba
Product Line: Aruba CX 8360 Series
Product Type: Managed Layer 3 Ethernet Switch
Total Ports: 52
Port Type: 48 x 1/10/25GBase-T (RJ-45), 4 x 40/100G QSFP28
Switching Capacity: 2.4 Tbps
Forwarding Rate: 1,785 Mpps
Layer Support: Layer 2 / Layer 3 / Layer 4
MAC Address Table: 512,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Routing: Static, OSPF, BGP, VRF, IPv4/IPv6
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, RADIUS, TACACS+, MACsec
Management: CLI, Web GUI, SNMP, NetEdit, REST API
High Availability: VSX, VRRP, ECMP, Nonstop Routing
Form Factor: 1U Rack-mountable
Power Supply: Dual hot-swappable PSUs
