JL726B Technical Specifications

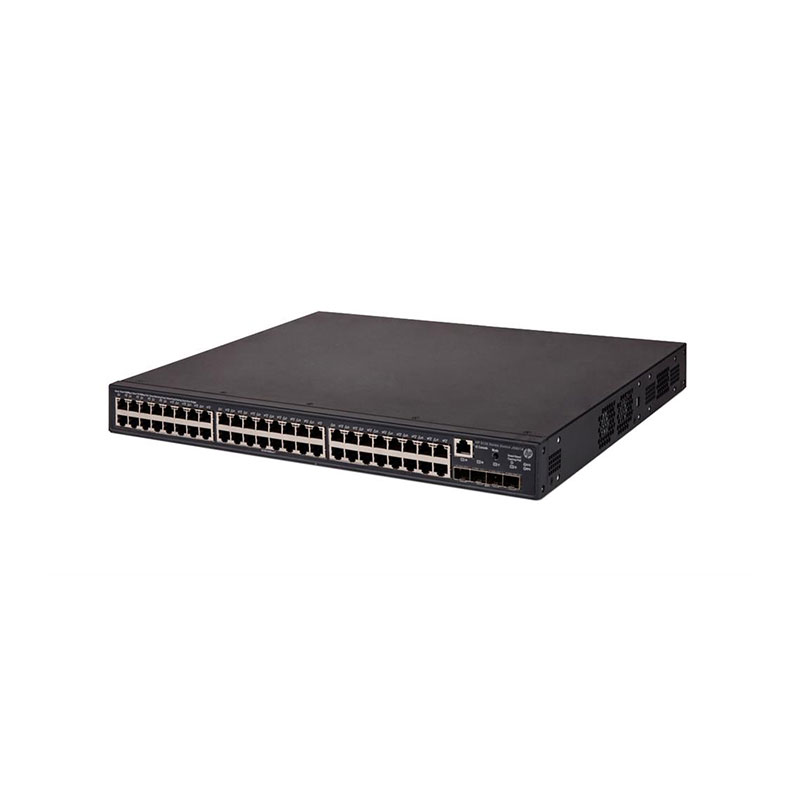

HPE Aruba 6200F 48G 48-Ports PoE+ RJ-45
Manufacturer Part Number: JL726B
Brand Name: HPE
Product Line: Aruba 6200F Series
Product Type: Layer 3 Managed PoE+ Gigabit Ethernet Switch
Total Ports: 48
Gigabit Ethernet Ports: 48 x 10/100/1000 RJ-45 PoE+
Uplink Ports: 4 x 10G SFP+
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Layer Support: Layer 2 / Layer 3
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static IPv4 / IPv6, RIP, OSPF
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 Queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping, DoS Prevention
Management: Web GUI, CLI, SNMP, RMON, Aruba Central
Port Mirroring: Supported
