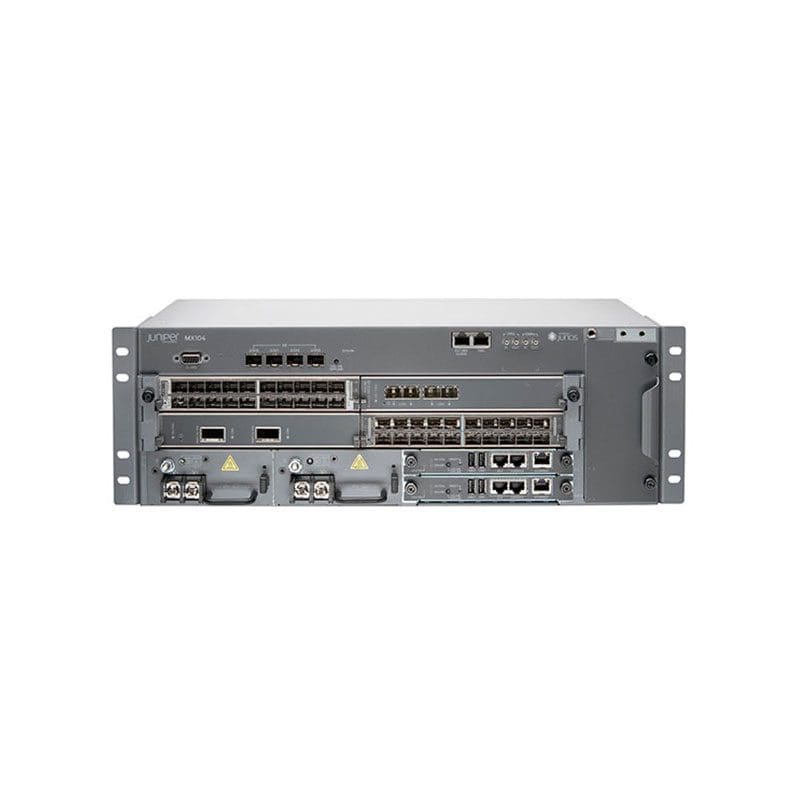

MX104-AC Juniper Networks Chassis Router
MX104-AC Overview
The Juniper Networks MX104-AC chassis provides redundancy and resiliency. It comes with four Modular Interface Card (MIC) slots and four redundant fixed 10GbE small form-factor pluggable (XFP) built-in ports for flexible network connectivity (license required for activation). Also included are the AC power supply, fan tray with filter,
$11,859
MX104-AC Technical Specifications
Juniper Networks MX104-AC Chassis Router
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks MX-series
Model :MX104
Packaged Quantity :1
Chassis
Airflow Direction :Side to side airflow
Supported Devices / Modules Qty :6
RAM
Technology :DDR3 SDRAM
Installed Size :4 GB
Networking
Type :Router
Form Factor :Rack-mountable
Modular :Modular
Connectivity Technology :Wired
Network / Transport Protocol :DHCP, IPSec
Remote Management Protocol :CLI, SNMP 1, SNMP 2, SNMP 3
Key Features :USB port, VPN support
Compliant Standards :IEEE 1588-2008
Expansion Slots
Expansion Slots :2 Services and Routing Engine (SRE), 4 (total) / 4 (free) x Modular Interface Card (MIC)
Power Device
Type :Internal power supply
Hot-Plug :Hot-plug
Max Supported Qty :2
Nominal Voltage :AC 100/230 V
Frequency Required :50/60 hertz
