ACX6360-OR-DC Technical Specifications

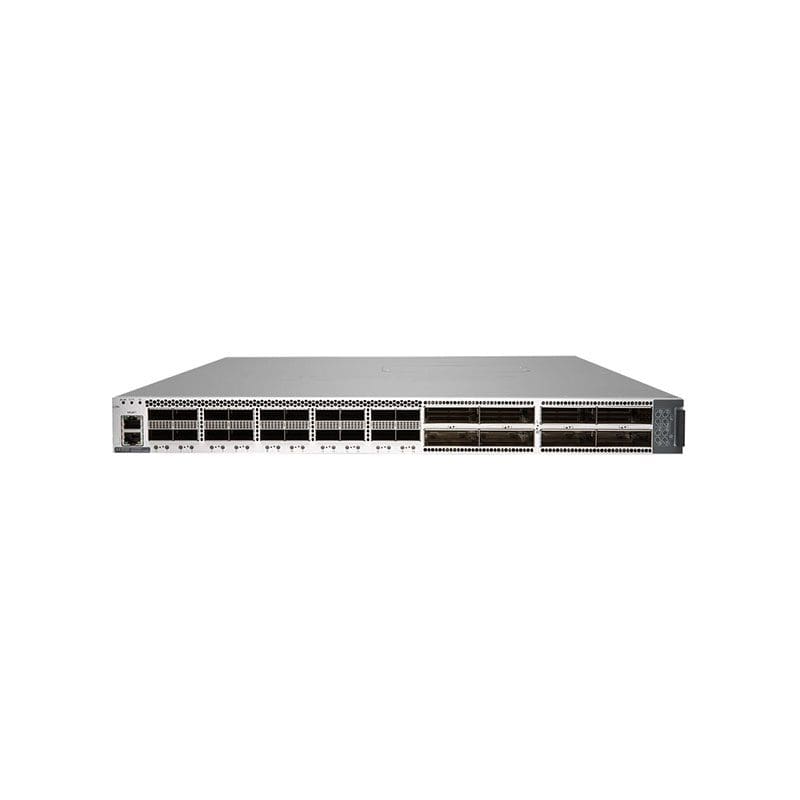

Juniper ACX6360 20xQSFP28/QSFP+ Optical Router
Manufacturer :Netscreen
Brand :Juniper, Juniper Networks
Product Line :Juniper Networks ACX Series
Model :6360
Packaged Quantity :1
Chassis
Airflow Direction :Front to back airflow
Modem
Type :None
Performance
Performance :Throughput: 7.2 Tbps
Capacity
Capacity :QoS priority queues per port: 8
Networking
Type :Router
Connectivity Technology :Wired
Key Features :VPN support
Interface Provided
Interfaces :20 x 100Gb Ethernet – QSFP28, 8 x 100Gb Ethernet / 200Gb Ethernet – CFP2
OS Provided
Type :JUNOS
Power Device
Type :Internal power supply
Nominal Voltage :DC -40 -72 V
Power Consumption Operational :756 watt
Miscellaneous
Color Category :Gray
Height (Rack Units) :1
Encryption Algorithm :256-bit AES
Dimensions & Weight
Width :17.4 inch
Depth :24.4 inch
Height :1.7 inch
Weight :29.98 lbs
