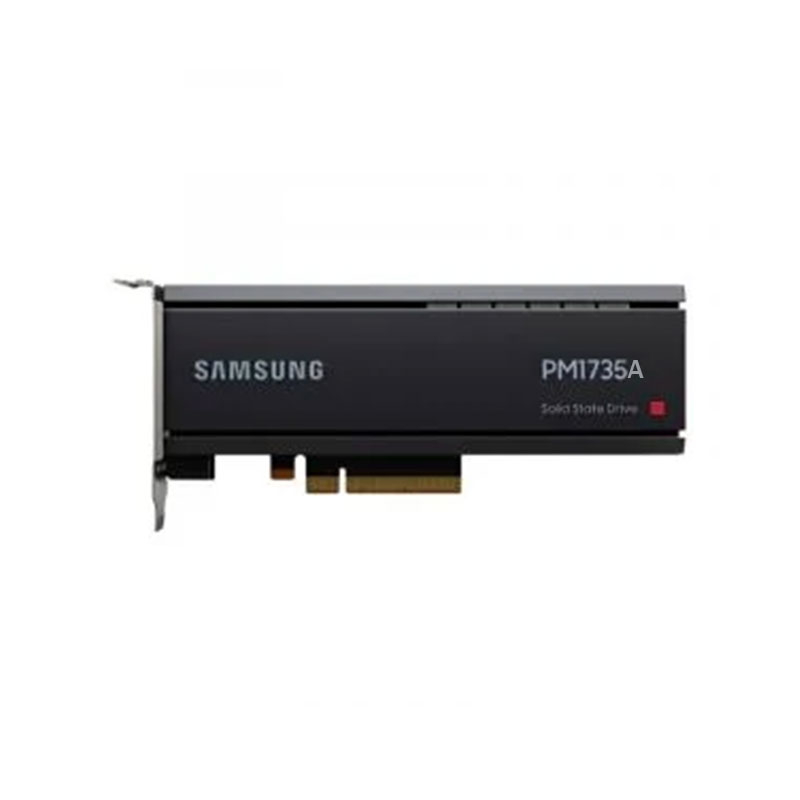

The Samsung PM1735a 3.2TB PCIe 4.0 x8 NVMe Mixed Use Solid State Drive (Model MZ-WLR3T2B) is a high-performance enterprise SSD engineered to meet the demanding needs of data centers, servers, and mixed-workload applications that require both high throughput and strong reliability. Based on Samsung’s PM1735a platform, this drive uses a PCI Express 4.0 x8 interface with the NVMe protocol to tap into Gen4 bandwidth, delivering sequential read speeds up to ~8,000 MB/s and sequential write speeds up to ~3,800 MB/s, enabling rapid transfer of large files and accelerated processing of data-intensive tasks. It also supports very high random I/O performance — up to about 1,500,000 IOPS for reads and 250,000 IOPS for writes — which significantly improves responsiveness in heavy multitasking, virtualization.
Device Type : Solid State Drive – Internal
Capacity : 3.2 Tb
Form Factor : 2.5
Interface : Pci Express 4.0 X8 (nvme)
Features : Enterprise
Performance :
Drive Writes Per Day (dwpd) : 3
Sequential Read : 8,000 Mb/s
Sequential Write : 3,800 Mb/s
Random Read : 1500k Iops
Random Write : 250k Iops
Expansion & Connectivity :
Interfaces : 1 X Pci Express 4.0 X8 (nvme)
