MZQL27T6HBLA-00B7C Technical Specifications

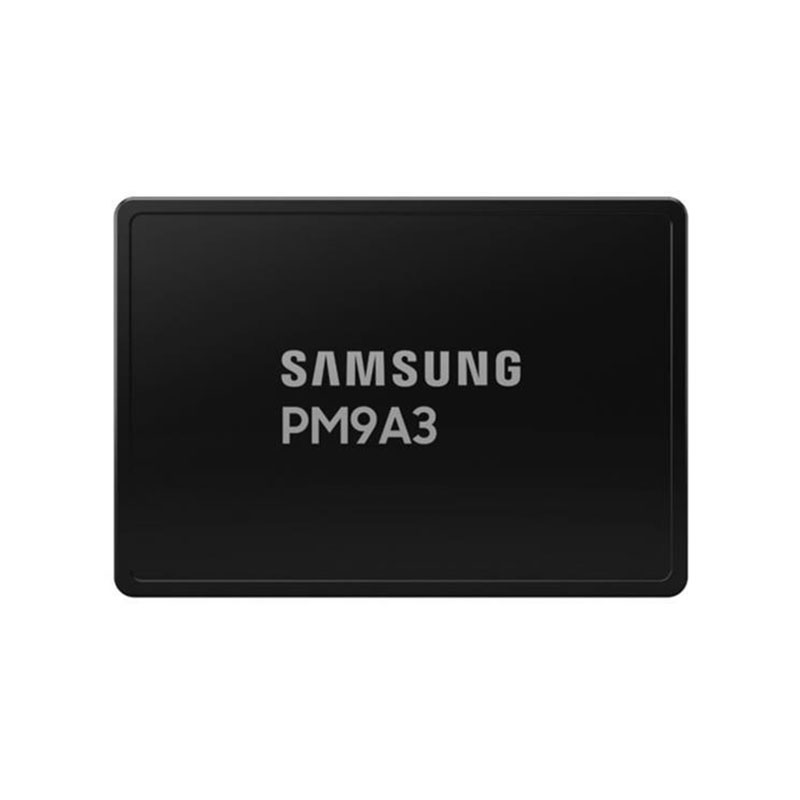

Samsung PM9A3 Series 7.68TB PCI-Express 4.0 x4 (NVMe) U.2 Data Center 2.5-inch Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZQL27T6HBLA-00B7C
Capacity: 7.68 TB
Form Factor: 2.5-inch U.2 (7 mm)
Interface: PCIe 4.0 x4, NVMe
NAND Type: V-NAND TLC
Sequential Read: Up to 6,700 MB/s
Sequential Write: Up to 4,000 MB/s
Random Read (4K): Up to 1,100,000 IOPS
Random Write (4K): Up to 200,000 IOPS
Endurance: 1 DWPD (5 years)
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 error per 10^17 bits read
Power Consumption (Active): ~11 W (Read) / ~13.5 W (Write)
Idle Power: ~3.5 W
Operating Temperature: 0 °C – 70 °C
Dimensions: 100.20 × 69.85 × 7.0 mm
