MZQL2960HCJR-00W07 Technical Specifications

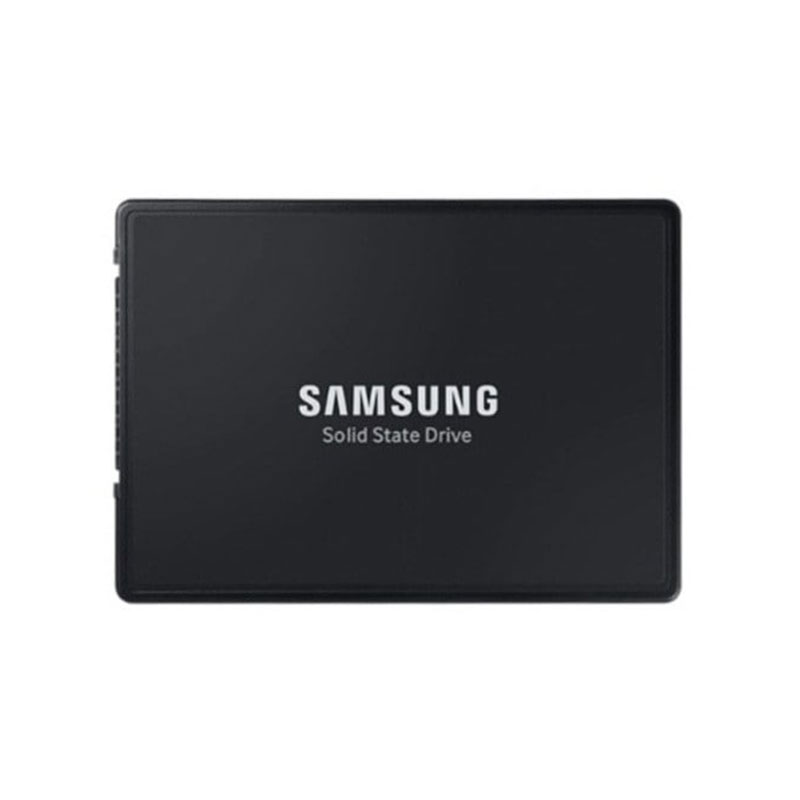

Samsung PM9A3 Series 960GB PCI-Express 4.0 x4 (NVMe) U.2 2.5-inch Data Center Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZQL2960HCJR-00W07
Capacity: 960 GB
Form Factor: 2.5-inch U.2
Interface: PCIe 4.0 x4, NVMe
NAND Type: TLC (V-NAND)
Sequential Read: Up to ~6,500 MB/s
Sequential Write: Up to ~2,500 MB/s
Random Read (4K): Up to ~800,000 IOPS
Random Write (4K): Up to ~150,000 IOPS
Endurance: 1 DWPD
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 per 10^17 bits read
Active Power: ~10–12 W
Operating Temperature: 0°C – 70°C
Dimensions: 100.2 × 69.85 × 7 mm
