MZQLB1T9HBJR Technical Specifications

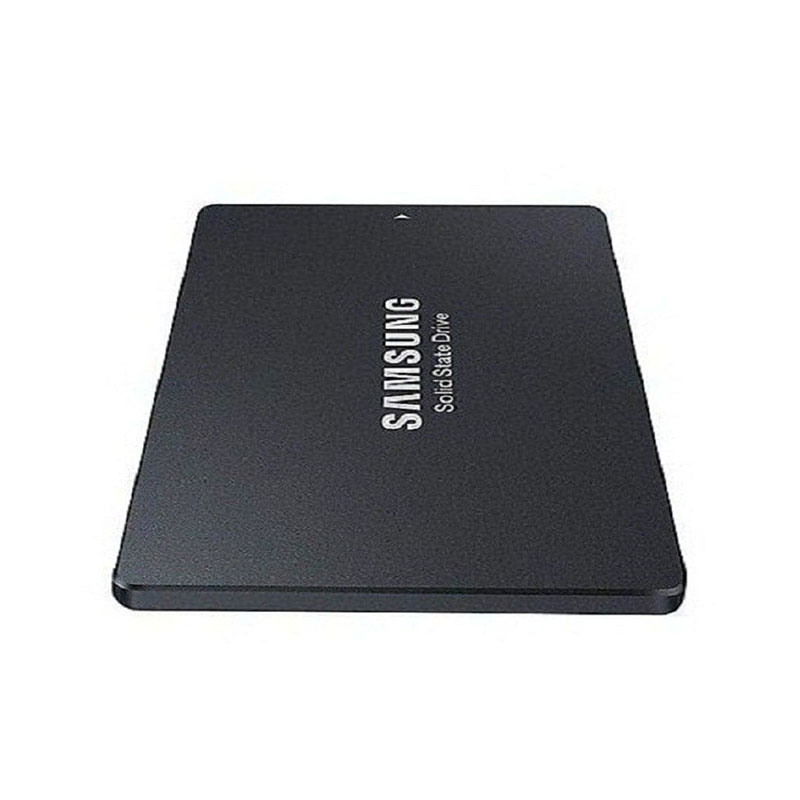

Samsung PM983a Series 1.92TB PCI-Express 3.0 x4 (NVMe) U.2 2.5-inch Solid State Drive (SSD)
Manufacturer: Samsung
Manufacturer Part: MZQLB1T9HBJR
Capacity: 1.92TB
Form Factor: 2.5-inch U.2
Interface: PCIe 3.0 x4, NVMe
NAND Type: TLC (V-NAND)
Sequential Read: Up to 3,000 MB/s
Sequential Write: Up to 1,900 MB/s
Random Read (4K): Up to 540,000 IOPS
Random Write (4K): Up to 50,000 IOPS
Endurance: ~1.3 DWPD
Power Loss Protection: Yes
MTBF: 2,000,000 hours
UBER: < 1 per 10^17 bits
Active Power: ~8–10 W
Operating Temp: 0°C – 70°C
Dimensions: 100.2 × 69.85 × 6.8 mm
