P20015-B21 Technical Specifications

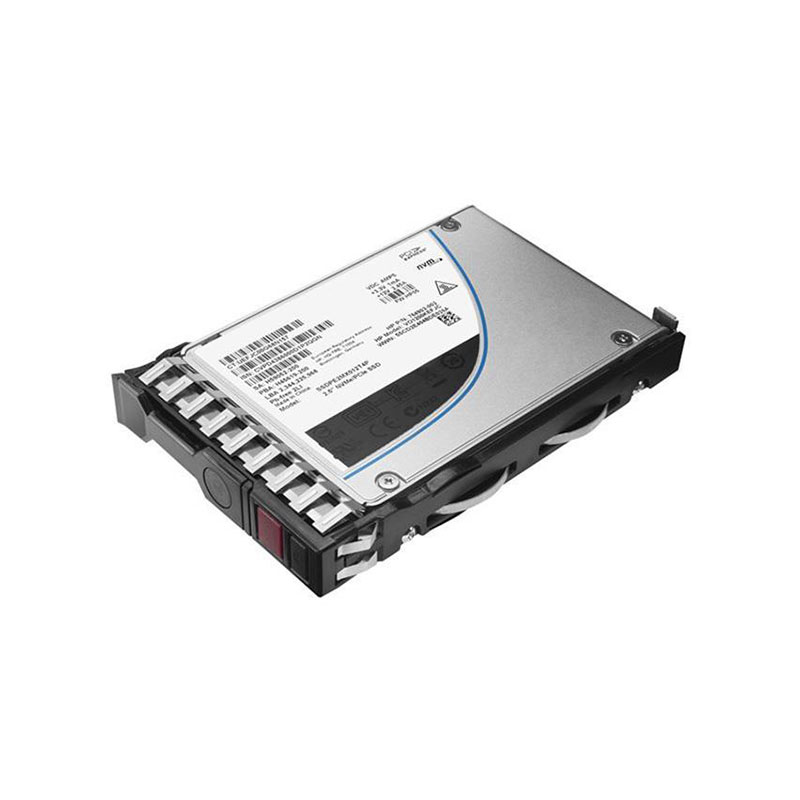

HPE 960GB PCI Express Gen4 NVMe Read Intensive U.3 2.5-inch Internal Solid State Drive (SSD) with Smart Carrier
Brand: HPE
MPN: P20015-B21
General
Device Type: Solid State Drive – Hot-Swap
Capacity: 960GB
Form Factor: 2.5 inch SFF
Interface: NVMe U.3 PCIe
Plug Type: Hot Pluggable
Carrier Type: Smart Carrier NVMe (SCN)
Workload Type: Read Intensive
Bundled with: HPE Smart Carrier NVMe (SCN)
Height: 15.00 mm (0.60 inch)
Performance
Endurance DWPD (Drive Writes Per Day): 1
Random Read IOPS (4KiB, Q=16): 175000
Random Write IOPS (4KiB, Q=16): 50000
MAX Random Read IOPS (4KiB): 880000@Q256
MAX Random Write IOPS (4KiB): 50000@Q32
Expansion & Connectivity
Interfaces: 1 x PCIe NVMe
Compatible Bay: 2.5″ SFF
Power Consumption
Maximum Power: 9 Watts
Product Dimensions & Weight
Height: 5.75 inch (14.61 cm)
Width: 8.63 inch (21.92 cm)
Depth: 9.00 inch (22.86 cm)
Weight: 1.508 lbs (0.68 kg)
