P20205-B21 Technical Specifications

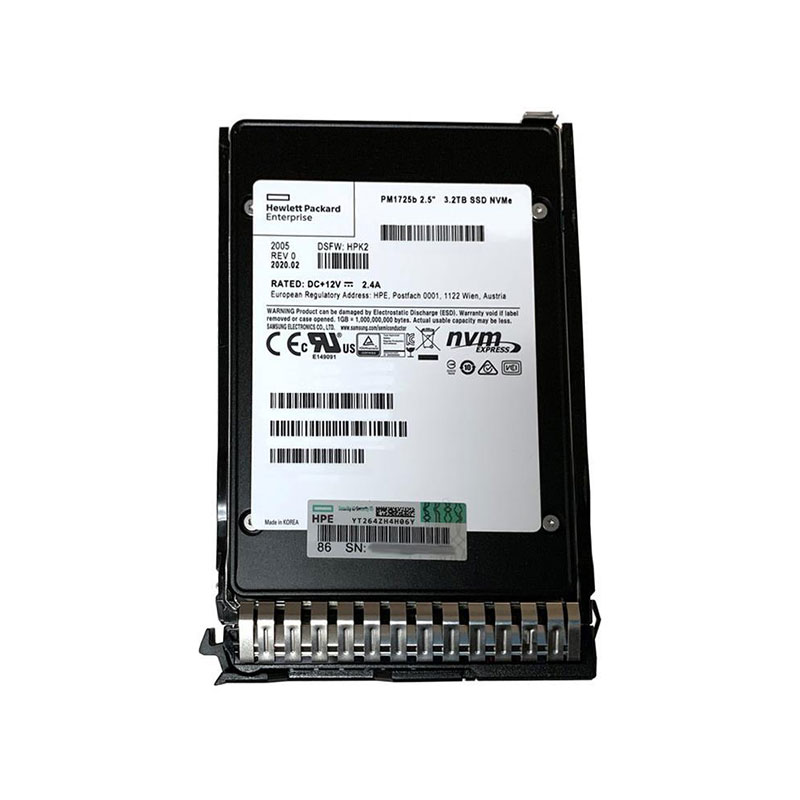

HPE 3.2TB PCI Express NVMe Gen4 Mixed Use U.3 2.5-inch Internal Solid State Drive (SSD)
Brand: HPE (Hewlett Packard Enterprise)
Model: P20205-B21
Capacity: 3.2TB
Interface: PCI Express Gen4 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3 Universal Interface
Drive Type: Mixed Use (MU) Solid State Drive
Performance Class: Enterprise-Class Gen4 NVMe
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 4,200 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 200,000 IOPS
Endurance Rating: 3 DWPD (Drive Writes Per Day)
NAND Flash Type: 3D TLC NAND
Latency (Read/Write): <0.1 ms / <0.2 ms typical
Power Consumption (Active): ~12W typical
Power Consumption (Idle): ~4.5W typical
MTBF (Reliability): 2 Million Hours
Encryption / Security: Digitally Signed Firmware
Hot-Pluggable: Yes
