P20604-001 Technical Specifications

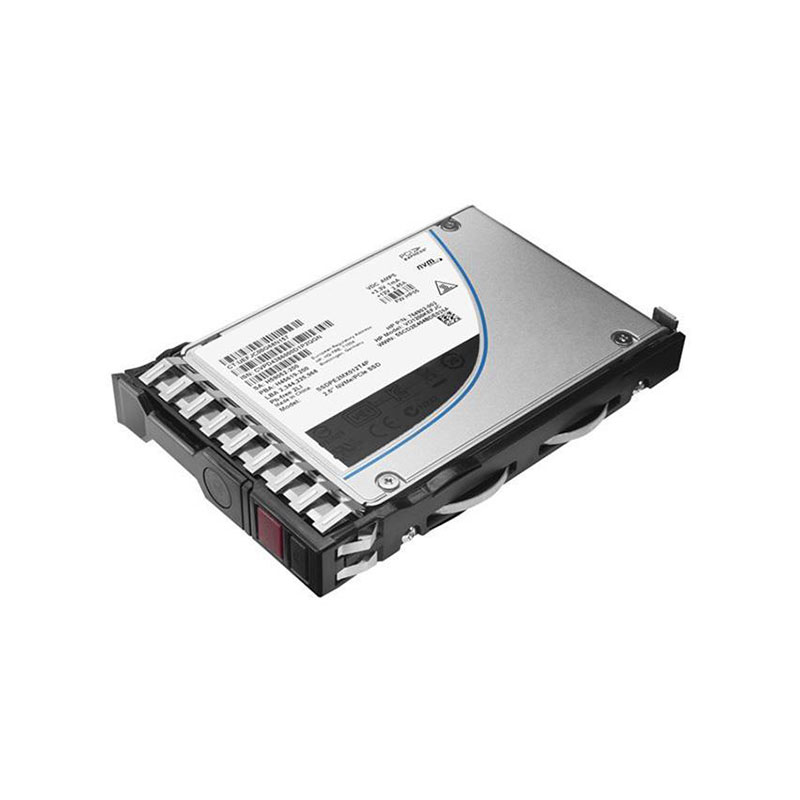

HP 6.4TB PCI-Express NVME Gen 4 Mixed Use SFF SCN U.3 Solid State Drive (SSD)
Brand: HP (Hewlett Packard Enterprise)
Model Number: P20604-001
Capacity: 6.4TB
Interface: PCI Express Gen4 x4 (NVMe)
Form Factor: 2.5-inch Small Form Factor (SFF)
Connector Type: U.3
Drive Type: Mixed Use (MU) Solid State Drive
Sequential Read Speed: Up to 7,000 MB/s
Sequential Write Speed: Up to 3,500 MB/s
Random Read (4K): Up to 1,000,000 IOPS
Random Write (4K): Up to 200,000 IOPS
Data Transfer Rate: Up to 32Gbps (PCIe Gen4 x4)
Endurance (DWPD): 3 Drive Writes Per Day
NAND Flash Type: 3D TLC NAND
Controller: Enterprise NVMe Controller
Latency (Read/Write): <1 ms / <2 ms
Power Consumption (Active): ~12W typical
Power Consumption (Idle): ~4W typical
Reliability (MTBF): 2 Million Hours
Operating Temperature: 0°C to 70°C
Hot-Pluggable: Yes
