P7GJV Dell Emulex LPE32002 32GB Dual-Port PCIE 3.0 Fibre Channel
P7GJV Overview
Emulex OneCommand Manager: This is a comprehensive management tool that provides a unified view of Emulex Fibre Channel and Converged Network Adapters, and allows administrators to manage and monitor their storage networks from a single interface. It provides real-time data on performance and health, and includes advanced diagnostics and troubleshooting tools.
Emulex HBA Capture: This tool allows administrators to capture and analyze HBA traffic, providing insights into traffic patterns and identifying potential issues. It can be used to troubleshoot performance problems and optimize network configurations.
P7GJV Technical Specifications

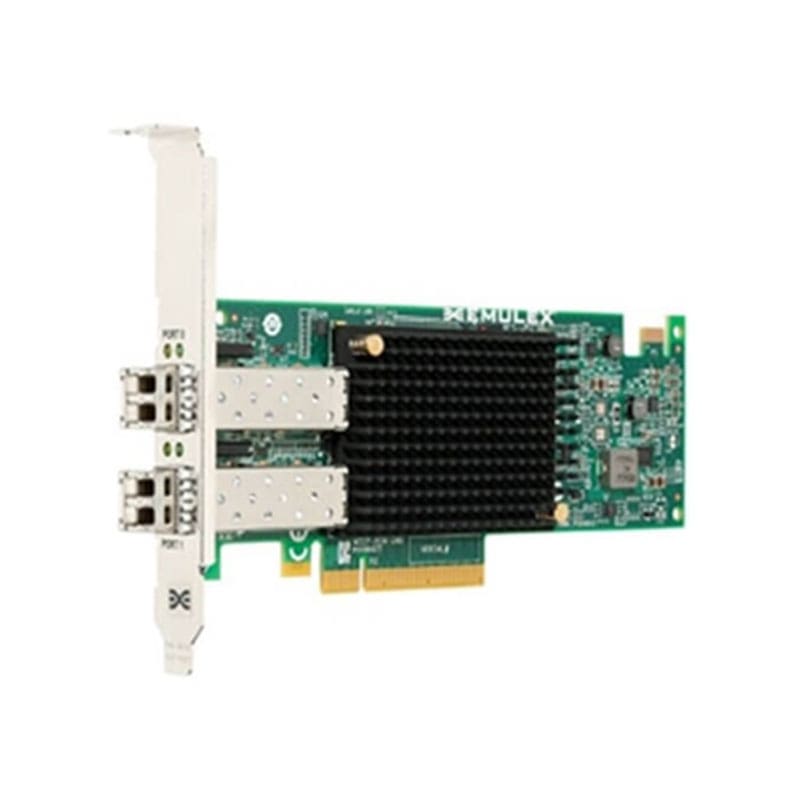

Dell Emulex LPE32002 32GB Dual-Port PCIE 3.0 Fibre Channel Host Bus Adapter With Standard Bracket Card Only
Brand: Dell
MPN : P7GJV
Type: Controller
Sub-Type: Fibre Channel
Interface: Fibre Channel (FC)
Data Transfer Rate: 32 Gbps
Bus Type: PCI Express 3.0 x8
Number of Ports: 2
Connector Type: SFP+ (Small Form-factor Pluggable Plus)
Operating Systems Supported: Windows, Linux, VMware
Protocols Supported: FCP (Fibre Channel Protocol), FC-AL (Fibre Channel Arbitrated Loop), FC-FLA (Fibre Channel Fabric Loop Attachment)
Management Support: SNMP (Simple Network Management Protocol), SMI-S (Storage Management Initiative Specification)
Dimensions: 6.6 x 2.7 in (16.8 x 6.9 cm)
