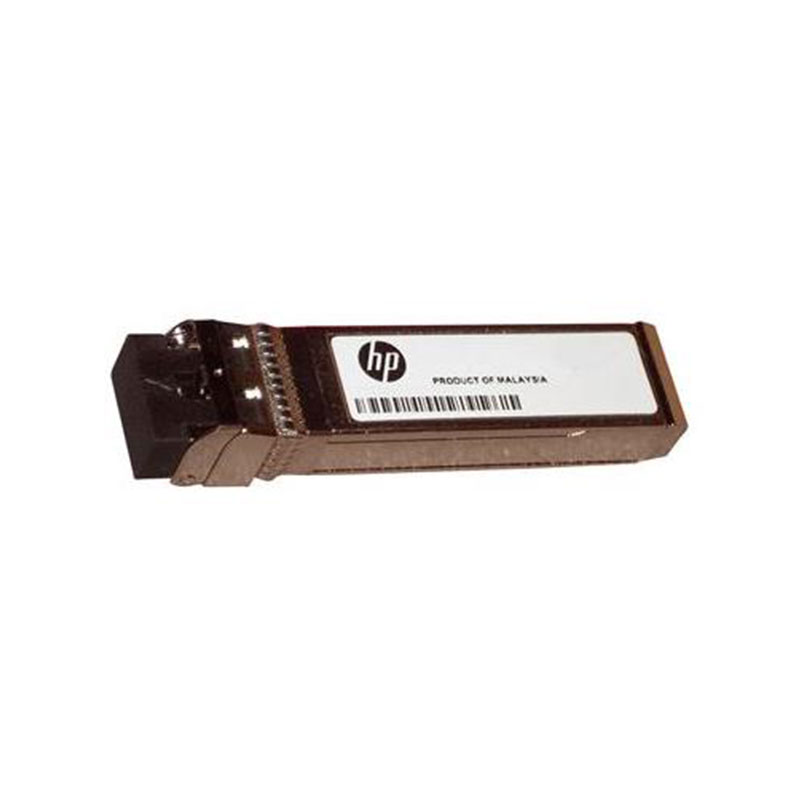

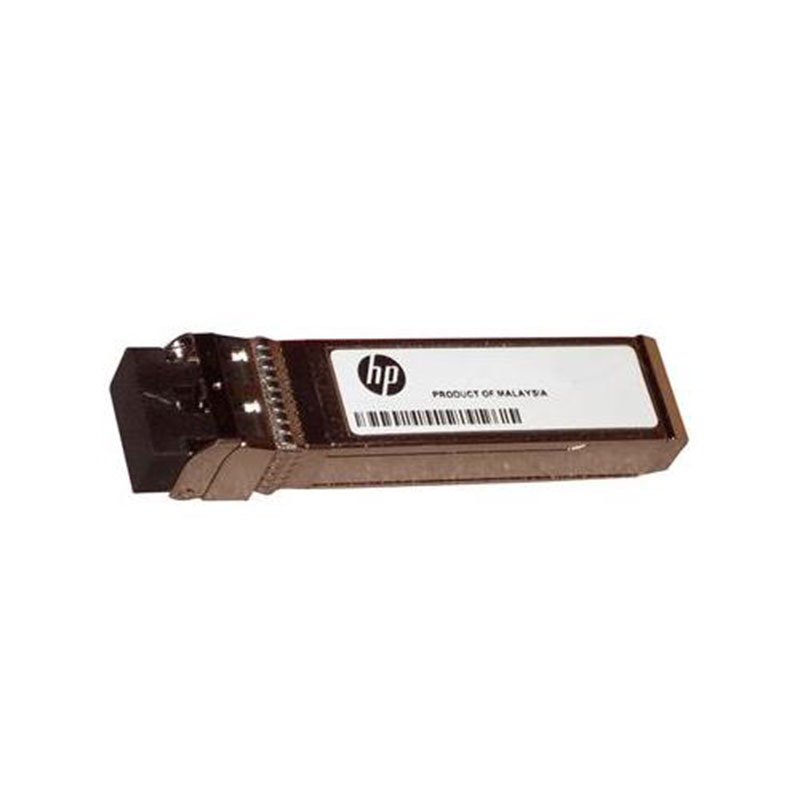

PLRXPL-VC-SH4-2H HP 8Gbps 8GBase-SR Multi-mode SFP+ Transceiver Module
PLRXPL-VC-SH4-2H Overview
The HP StorageWorks PLRXPL-VC-SH4-2H 8GBASE-SR SFP+ Transceiver Module is a high-quality optical module designed to deliver 8 Gbps Fibre Channel connectivity over multi-mode fiber (MMF) for short-reach storage networking applications. Operating at an 850 nm wavelength, it supports transmission distances of up to 150 meters on OM4 and around 125 meters on OM3 cabling, making it ideal for SAN (Storage Area Network) environments, data centers, and enterprise deployments. Featuring a duplex LC connector, it offers standards-based, straightforward integration with existing fiber infrastructure and HP StorageWorks switches, arrays, and directors. The hot-swappable design allows for quick installation or replacement without network downtime, simplifying maintenance and upgrades.
PLRXPL-VC-SH4-2H Technical Specifications
HP 8Gbps 8GBase-SR Multi-mode Fiber 150m 850nm LC Connector SFP+ Transceiver Module
Manufacturer: HP
Network
Transceiver Type: SFP+
Data Transfer Rate: 8 Gbps
Mode: Multi-mode Fiber (MMF)
Max. Distance; 150 m
Wavelength: 850 nm
Connector Type: LC Connector
Related products
-
HPE Transceivers, Transceivers
746960-001 HPE Blade system C-Class 40GB QSFP+ MPO SR4 100M
746960-001 Overview
The HPE Blade System c-Class 40Gb QSFP+ MPO SR4 Transceiver is a high-speed optical module engineered to deliver 40 Gbps Ethernet connectivity over multi-mode fiber (MMF) for short-reach, high-density networking environments. Operating at an 850 nm wavelength, it uses parallel optics with an MPO connector, supporting transmission distances of up to 100 meters on OM4 and approximately 70 meters on OM3 fiber cabling. Specifically designed for HPE Blade System c-Class environments, this transceiver enables efficient, high-bandwidth connections between blade enclosures, top-of-rack switches, and spine-leaf architectures in modern data centers. It also supports 4x10GbE breakout configurations for flexible deployment in networks requiring high port density and scalable design.
SKU: 746960-001 -
HP Transceiver, Transceivers
P37547-001 HP B-Series 1Gb/s 1000Base-SW MMF SFP Transceiver Module
P37547-001 Overview
The HP is a high-quality SFP (Small Form-Factor Pluggable) optical transceiver module specifically designed for HP B-Series switches and networking devices. Supporting 1Gbps (1 Gigabit per second) data rates, it complies with the 1000Base-SW standard, making it ideal for shortwave Fibre Channel (FC) applications over multi-mode fiber (MMF).Operating at an 850nm wavelength, this transceiver enables reliable data transmission over distances of up to 500 meters on OM2 fiber, and even greater distances on OM3/OM4 fiber, depending on network setup and conditions. The transceiver features a duplex LC connector, facilitating easy connection with standard fiber optic cables widely deployed in enterprise and data center environments.
SKU: P37547-001 -
HPE Transceivers, Transceivers
876143-001 HPE 16GB Short Wave Transceiver
876143-001 Overview
The HPE 876143-001 16Gb Short Wave (SW) Transceiver is a high-quality optical module designed to deliver 16 Gbps Fibre Channel connectivity over multi-mode fiber (MMF) for short-reach storage networking applications. Operating at an 850 nm wavelength, it supports transmission distances of up to 100 meters on OM4 and approximately 70–125 meters on OM3 fiber, making it ideal for Storage Area Networks (SANs) in enterprise data centers. Featuring a duplex LC connector, it ensures standards-based, seamless integration with existing fiber infrastructure and is fully compatible with HPE switches, directors, and storage arrays.
SKU: 876143-001 -
HPE Transceivers, Transceivers
813874-B21 HPE SFP+ Transceiver Module 10 GigE
813874-B21 Overview
The HPE 813874-B21 SFP+ Transceiver Module is a reliable, high-performance optical module designed to deliver 10 Gigabit Ethernet (10 GigE) connectivity over multi-mode fiber (MMF) for short-reach networking applications in data centers and enterprise environments. Operating at an 850 nm wavelength, it typically supports transmission distances of up to 300 meters on OM3 fiber and 400 meters on OM4 fiber, making it ideal for high-density switch-to-switch, server-to-switch, and top-of-rack connections. Featuring a duplex LC connector, this transceiver ensures simple, standards-compliant integration with existing fiber infrastructure, enabling straightforward upgrades to 10 GbE performance.
SKU: 813874-B21
