Home›Transceivers›HPE Transceivers›Q2P63A HPE 16Gbps 16GBase-SW Multi-mode Fiber MPO Connector SFP+ Transceiver Module
HPE-Q2P63A

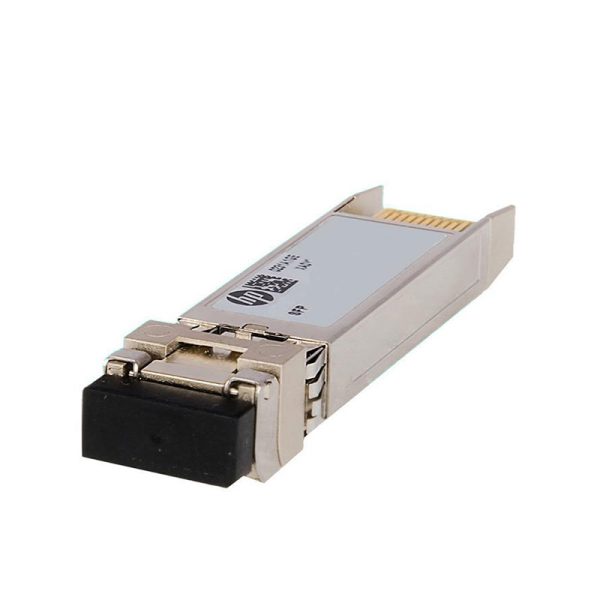

Q2P63A HPE 16Gbps 16GBase-SW Multi-mode Fiber MPO Connector SFP+ Transceiver Module

Q2P63A Overview

The HPE Q2P63A is a high-performance SFP+ optical transceiver designed for 16 Gigabit Fibre Channel (16GFC) connectivity over multi-mode fiber (MMF). It utilizes the 16GBase-SW standard to deliver reliable, low-latency performance for storage area networks (SANs), data centers, and enterprise backbone networks.Equipped with an MPO optical connector, the module supports short-range links typical of intra-rack and inter-rack deployments, ensuring high-speed, low-loss optical transmission over multi-mode fiber. Fully compliant with SFF-8472 and SFP+ MSA standards, the  guarantees interoperability with HPE B-Series switches, SAN infrastructure, and other compatible networking devices.

Availability: In Stock
SKU:Q2P63A
Brand:

Q2P63A Technical Specifications

HPE 16Gbps 16GBase-SW Multi-mode Fiber MPO Connector SFP+ Transceiver Module

Manufacturer Part Number: Q2P63A
Brand Name: HPE
Product Type: SFP+ Transceiver
Data Rate: 16Gbps
Transceiver Type: 16GBase-SW (Short Wavelength)
Media Type Supported: Multi-Mode Fiber (MMF)
Wavelength: 850nm
Connector Type: MPO
Maximum Reach: Up to 100m (OM3) / 125m (OM4)
Form Factor: SFP+
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Supported
Fiber Strand Count: 2 (duplex)
Compatibility: HPE Fibre Channel switches and SAN devices
Application: Storage area networks (SAN)
Standards Compliance: FC-PI-5, SFP+ MSA
Backward Compatibility: Supports 8Gbps and 4Gbps FC operation
Operating Temperature: 0°C to 70°C
