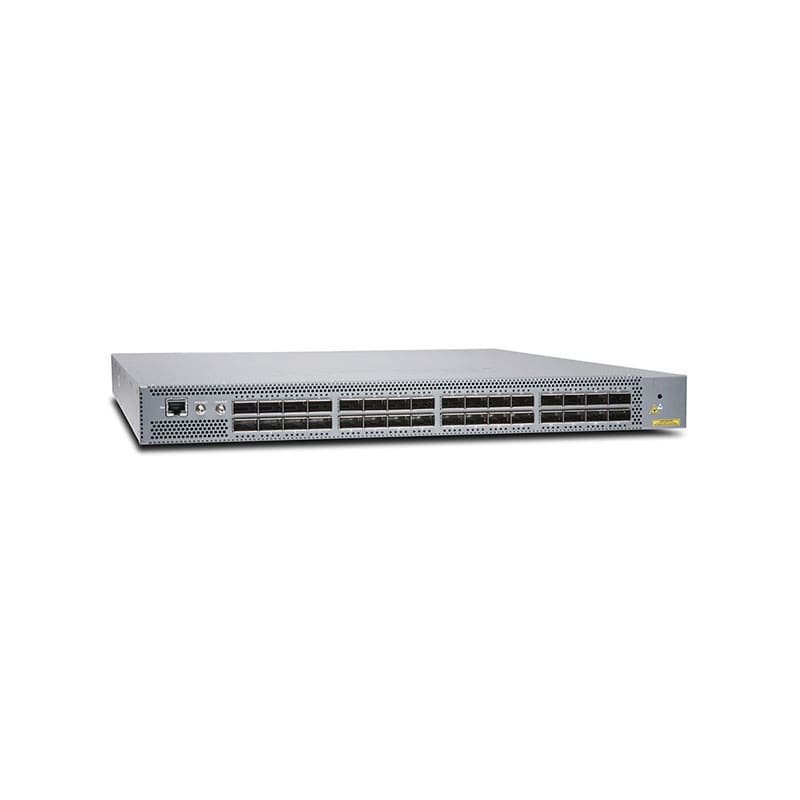

QFX5200-32C-AFO-T2 Juniper QFX5200 32x100G Ethernet Switch

QFX5200-32C-AFO-T2 Overview

The QFX5200 line of access switches is ideally suited for leaf deployments in next-generation IP fabrics. It features line-rate, high-density SFP28/QSFP+/ QSFP28 ports that support 10GbE, 25GbE, 40GbE, 50GbE, and 100GbE connections. Offering an advanced L2, L3, and MPLS feature set, network operators can use the QFX5200 to build large, high-density IP fabrics that support upgrades to 25GbE servers, network virtualization, and intelligent traffic forwarding based on proven, Internet-scale technology. The QFX5200 also supports a version of Junos OS software in which control plane and data plane processes and functions run in parallel, maximizing utilization of the high-performance quad-core CPU.

$23,955

Buy Now
Availability: In Stock
SKU:QFX5200-32C-AFO-T2
Brand:

QFX5200-32C-AFO-T2 Technical Specifications

Juniper QFX5200 32x100G Ethernet Switch with 2 AC Power Supplies and Front-to-Back Airflow

Manufacturer Part Number: QFX5200-32C-AFO-T2
Product Type: Ethernet Switch
Manageable: Yes
Ethernet Technology: 100 Gigabit Ethernet, 40 Gigabit Ethernet
Number of Total Expansion Slots: 32
Product Family: QFX
Media Type Supported: Optical Fiber
Redundant Power Supply Supported: Yes
TAA Compliant: Yes
Expansion Slot Type: QSFP28, QSFP+
Form Factor: Rack-mountable
Power Consumption: 480 W
Power Source: Power Supply
Layer Supported: 3
Environmentally Friendly: Yes
Compatible Rack Unit: 1U
Modular: Yes
Uplink Port: Yes
Port / Expansion Slot Details: 32 x 100 Gigabit Ethernet Uplink
Height: 1.7″
Width: 17.4″
Depth: 20.5″
Product Series: QFX
Product Model: QFX5200-32C
Network Technology: 100GBase-Xl, 40GBase-X
