R3B00A Technical Specifications

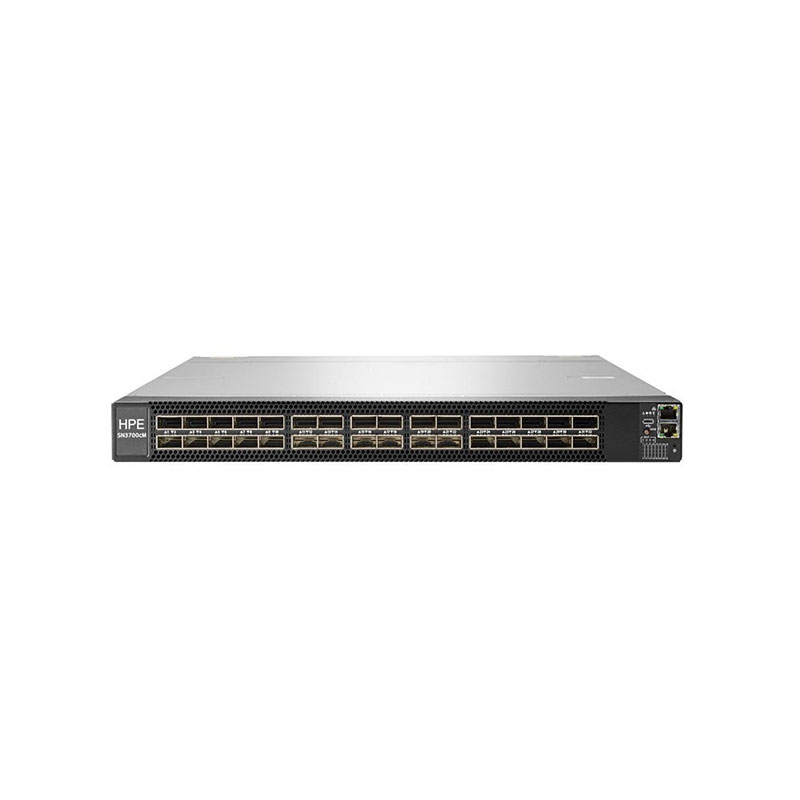

HPE SN3700cM 32Q28 ONIE P2C DC Switch
Manufacturer Part Number: R3B00A
Brand Name: HPE
Product Line: SN3700 Series
Product Type: Managed Data Center Switch
Total Ports: 32
100-Gigabit Ethernet Ports: 32 x QSFP28 (supports 10/25/40/50/100GbE)
Switching Capacity: 6.4 Tbps
Forwarding Rate: 4,760 Mpps
Layer Support: Layer 2 / Layer 3 / Layer 4
MAC Address Table: 512,000 entries
VLAN Support: 4,094 VLANs (IEEE 802.1Q)
Routing: Static, OSPF, BGP, IS-IS, IPv4/IPv6
Spanning Tree Protocols: STP, RSTP, MSTP
Link Aggregation: IEEE 802.3ad LACP
Quality of Service (QoS): 8 queues, DSCP, IEEE 802.1p
Security: ACLs, 802.1X, DHCP Snooping, uRPF, DoS Protection
Management: CLI, Web UI, SNMP, RMON, sFlow
Port Mirroring: Supported
