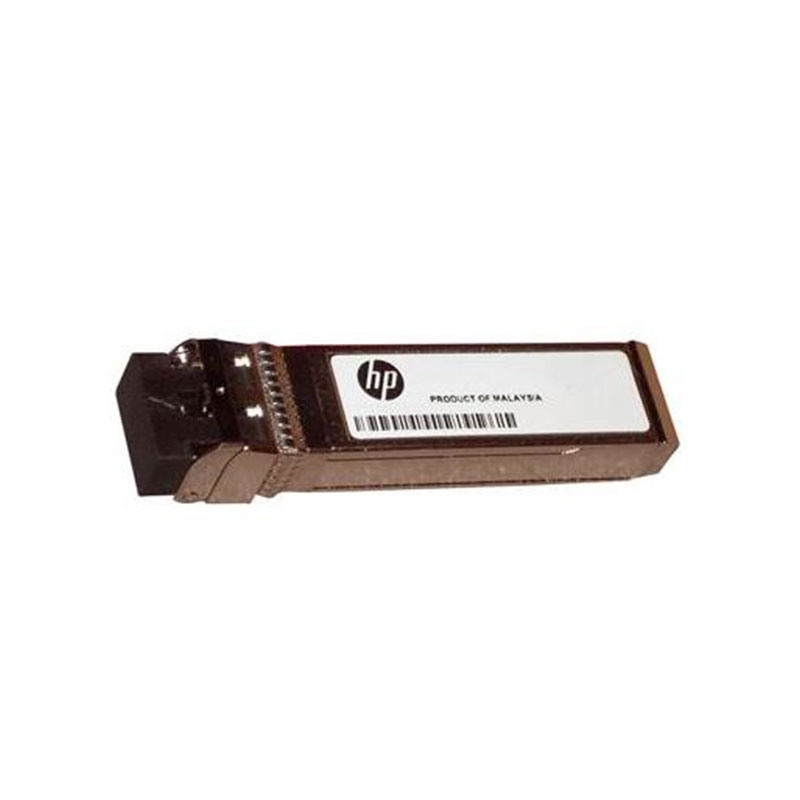

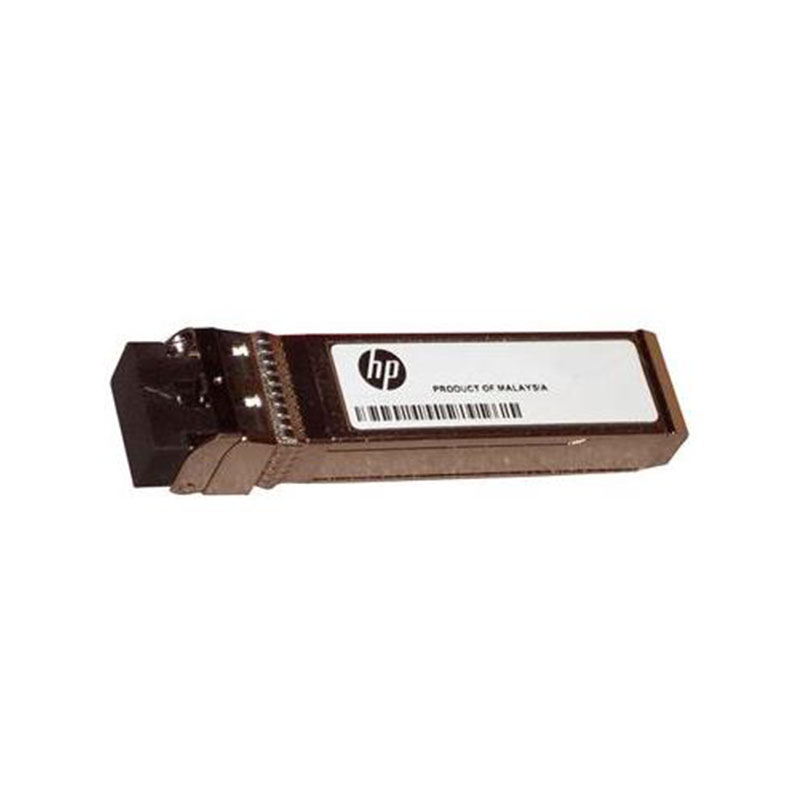

R6B14A HP B-Series 10Gb/s 10Gbaase-SR Fibre Channel SW SFP+Transceiver
R6B14A Overview
The HP is a high-performance 10Gbps Fibre Channel (FC) transceiver specifically designed for HPE B-Series switches and storage area network (SAN) environments. Compliant with the 10GBase-SR standard, this Short Wave (SW) transceiver enables high-speed optical connectivity over multi-mode fiber (MMF), ideal for short-distance data transmissions typically found within data centers and SAN infrastructures.Operating at a wavelength of 850nm, the supports transmission distances up to 300 meters on OM3 fiber and 400 meters on OM4 fiber, making it highly suitable for intra-rack or inter-rack connections in large enterprise and data center deployments. Its SFP+ form factor allows for compact, hot-pluggable integration into compatible networking equipment, facilitating easy upgrades and maintenance without service disruption.
R6B14A Technical Specifications
HP B-Series 10Gb/s 10Gbaase-SR Fibre Channel SW SFP+Transceiver
Part Number: R6B14A
Transceiver Type: 10Gbps Fibre Channel Shortwave (SW) SFP+ Transceiver
Form Factor: SFP+
Protocol Support: – 10Gb Fibre Channel (10G FC),- May support Ethernet 10GBASE-SR in dual-use scenarios
Data Rate: 10.52 Gbps (FC line rate)
Wavelength: 850 nm (Short Wave)
Connector Type: LC Duplex
Fiber Type: Multimode Fiber (MMF)
Transmission Distance: – Up to 300 meters on OM3 MMF,- Up to 400 meters on OM4 MMF
Transmitter Type: VCSEL (Vertical Cavity Surface Emitting Laser)
Receiver Type: PIN Photodiode
