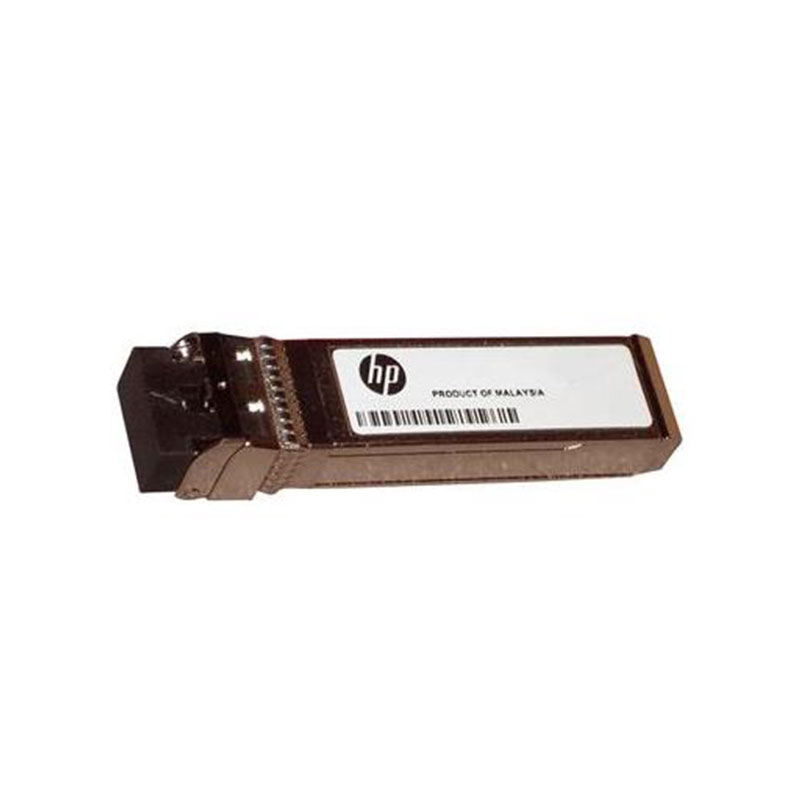

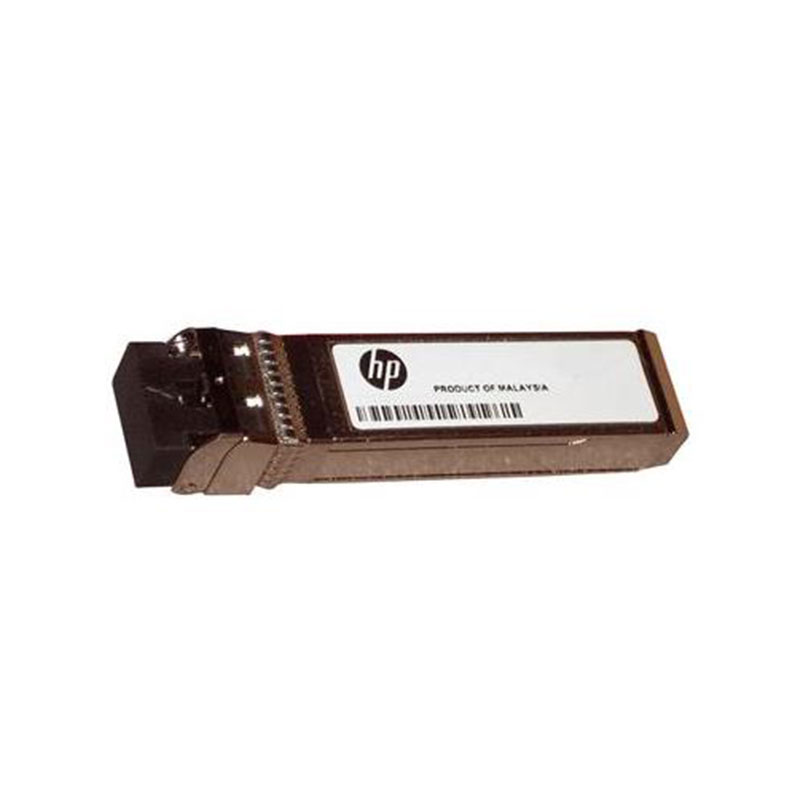

R6W23A HP B-Series 10Gb/s 10Gbaase-SR Fibre Channel SW SFP+Transceiver
R6W23A Overview
The HPE R6W23A is a high-performance 10Gbps Fibre Channel (FC) transceiver module designed specifically for HPE B-Series switches and Storage Area Networks (SANs). This transceiver supports the 10GBase-SR (Short Reach) standard, which delivers reliable, high-speed optical data transmission over multi-mode fiber (MMF) for short-range network connectivity.Operating at an 850nm wavelength, the R6W23A supports distances up to 300 meters on OM3 fiber and up to 400 meters on OM4 fiber, making it ideal for connections within data centers such as intra-rack, inter-rack, and cross-floor deployments where ultra-fast, low-latency communication is critical. The Duplex LC connector ensures secure, high-quality fiber connections, and the SFP+ hot-pluggable form factor provides flexibility for on-the-fly maintenance or upgrades without interrupting network services.
R6W23A Technical Specifications
HP B-Series 10Gb/s 10Gbaase-SR Fibre Channel SW SFP+Transceiver
Part Number: R6W23A
Transceiver Type: 10Gbps Fibre Channel Short Wave (SW) SFP+ Transceiver
Form Factor: SFP+
Protocol Support: – 10Gb Fibre Channel (10G FC),- May also support 10G Ethernet (10GBASE-SR)
Data Rate: 10.52 Gbps (FC),10.3125 Gbps (Ethernet)
Wavelength: 850 nm (Short Wave)
Connector Type: LC Duplex
Fiber Type: Multimode Fiber (MMF)
Transmission Distance: – Up to 300 meters on OM3 MMF,- Up to 400 meters on OM4 MMF
Transmitter Type: VCSEL (Vertical Cavity Surface Emitting Laser)
Receiver Type: PIN Photodiode
