R9D17A Technical Specifications

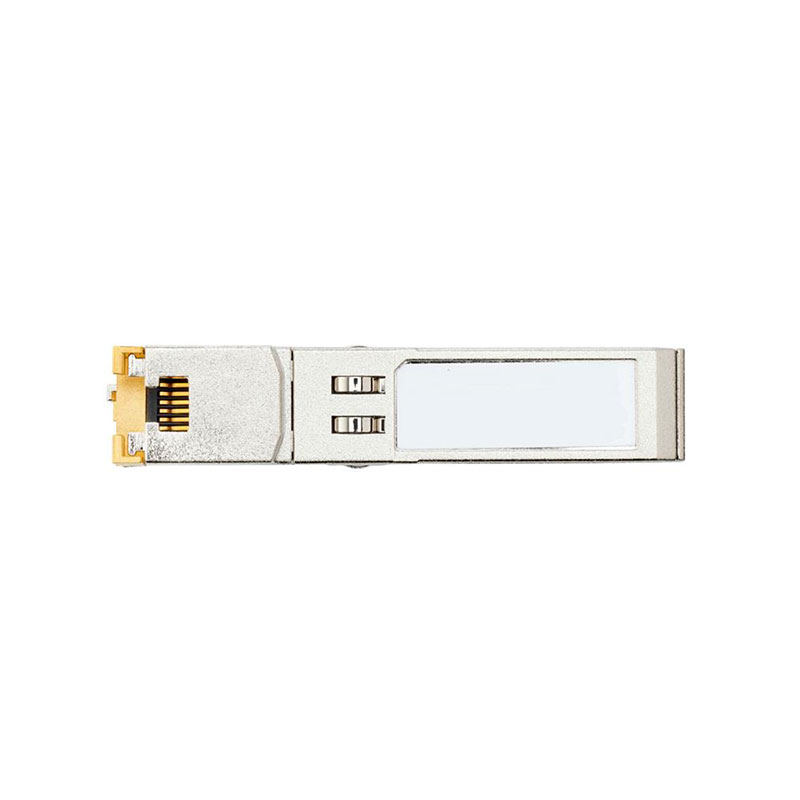

HP 1Gb/s SFP 100m RJ-45 Copper-Mode Transceiver
Manufacturer Part Number: R9D17A
Brand Name: HP
Product Type: SFP Transceiver Module
Data Rate: 1Gbps
Transceiver Type: 1000Base-T
Media Type Supported: Copper (Twisted Pair)
Connector Type: RJ-45
Maximum Reach: Up to 100m on Cat 5e/6 UTP cabling
Form Factor: SFP
Hot Swappable: Yes
Digital Diagnostics Monitoring (DOM): Not applicable (copper module)
Compatibility: HP switches and networking devices with SFP slots
Application: Gigabit Ethernet over copper cabling
Standards Compliance: IEEE 802.3ab 1000Base-T, SFP MSA
Backward Compatibility: Supports 10/100/1000 Mbps auto-negotiation
Power Consumption: Low power design (<1W typical)
Operating Temperature: 0°C to 70°C (standard range)
Storage Temperature: -40°C to 85°C
