R9Y03A Technical Specifications

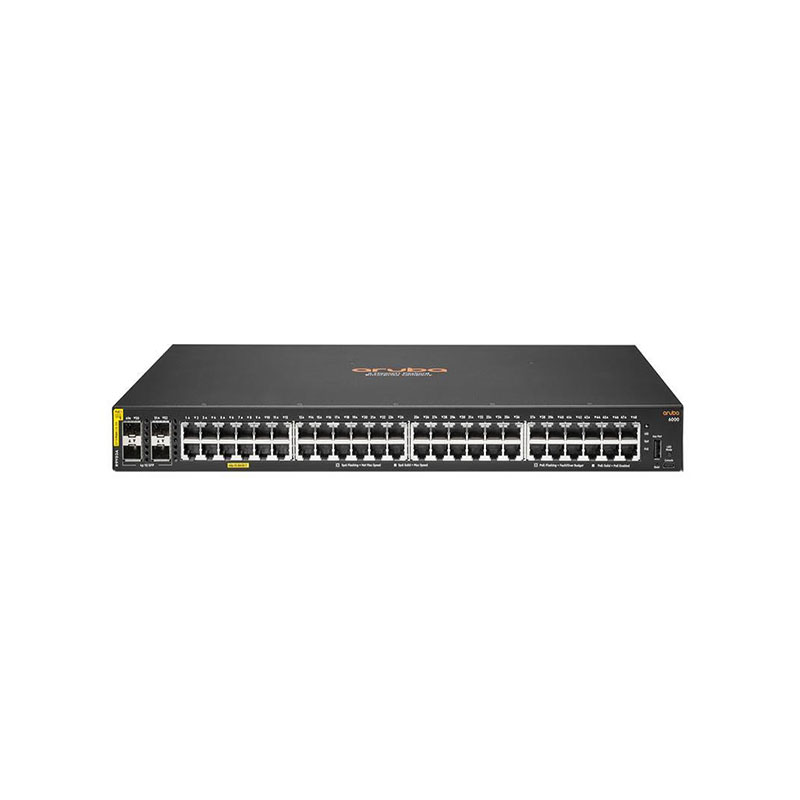

HPE Aruba CX 6000 48G 48-Ports RJ-45 + 4-Ports SFP Switch
Manufacturer Part Number: R9Y03A
Brand Name: HPE
Product Line: Aruba CX 6000 Series
Product Type: Managed Gigabit Ethernet Switch
Total Ports: 52
Gigabit Ethernet Ports: 48 x 10/100/1000Base-T RJ-45
Uplink Ports: 4 x 1G SFP
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Layer Support: Layer 2 / Layer 3 Lite
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs (IEEE 802.1Q)
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static IPv4 / IPv6
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 hardware queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP, RMON, Aruba Central
Port Mirroring: Supported
Stacking Capability: Virtual stacking up to 4 units
