R9Y04-61001 Technical Specifications

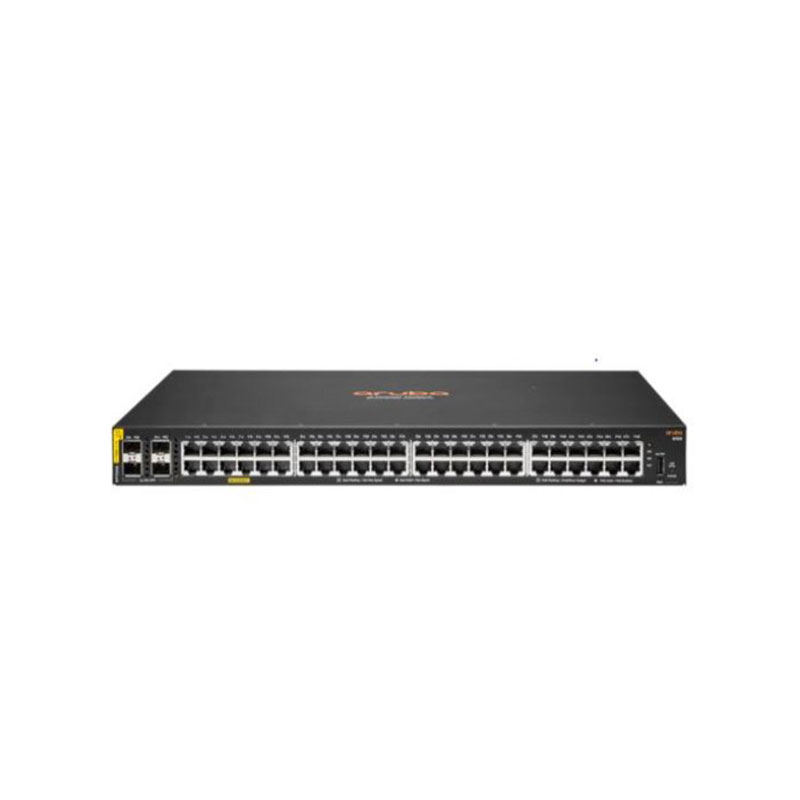

HPE Aruba CX 6100 48-Ports RJ-45 + 4-Ports SFP+ Switch
Manufacturer Part Number: R9Y04-61001
Brand Name: HPE
Product Line: Aruba CX 6100 Series
Product Type: Layer 2 Managed Gigabit Ethernet Switch
Total Ports: 52
Gigabit Ethernet Ports: 48 x 10/100/1000 RJ-45
Uplink Ports: 4 x 1G/10G SFP+
Switching Capacity: 176 Gbps
Forwarding Rate: 130.95 Mpps
Layer Support: Layer 2 with limited Layer 3 (Static IPv4/IPv6)
MAC Address Table: 32,000 entries
VLAN Support: Up to 4,094 VLANs
Spanning Tree Protocols: STP, RSTP, MSTP
Routing: Static IPv4 / IPv6
Link Aggregation: IEEE 802.3ad LACP
Flow Control: IEEE 802.3x
Quality of Service (QoS): 8 Queues, DSCP, IEEE 802.1p
Security: 802.1X, ACLs, Port Security, DHCP Snooping
Management: Web GUI, CLI, SNMP, RMON, Aruba Central
Port Mirroring: Supported
Stacking Capability: Not Supported
