ROG-STRIX-RTX2060-A6G-GAMING Technical Specifications

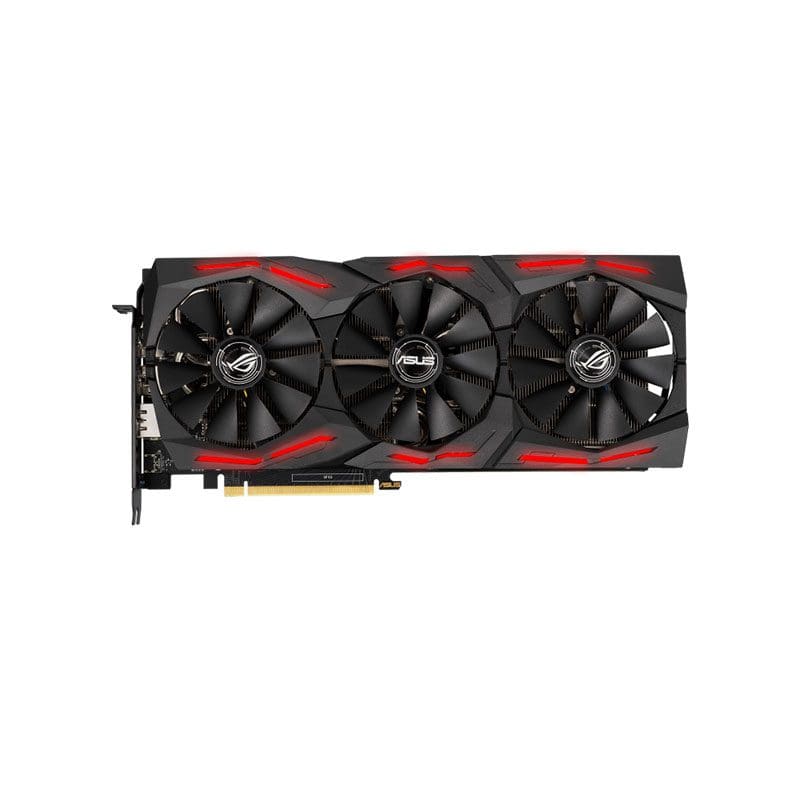

ASUS ROG STRIX GeForce RTX 2060 DirectX 12 6GB 192-Bit GDDR6 PCI Express 3.0 HDCP Ready Video Card
Model
Brand
ASUS
Series
ROG STRIX
Model
ROG-STRIX-RTX2060-A6G-GAMING
Interface
Interface
PCI Express 3.0
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 20 Series
GPU
GeForce RTX 2060
Core Clock
OC Mode: 1395 MHz
Gaming Mode: 1365 MHz
Boost Clock
OC Mode: 1740 MHz
Gaming Mode: 1710 MHz
CUDA Cores
1920
Memory
Effective Memory Clock
14000 MHz
Memory Size
6GB
Memory Interface
192-Bit
Memory Type
GDDR6
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6
Ports
HDMI
2 x HDMI 2.0b
Multi-Monitor Support
4
DisplayPort
2 x DisplayPort 1.4
Details
Max Resolution
7680 x 4320
SLI Support
No
Virtual Reality Ready
Yes
Cooler
Triple Fans
Thermal Design Power
160W
System Requirements
Recommended PSU: 500W
Power Connector
1 x 6-pin, 1 x 8-pin
HDCP Ready
2.2
Features
Features
NVIDIA TURING: ROG GeForce RTX graphics cards are powered by the Turing GPU architecture and the all-new RTX platform. This gives you up to 6X the performance of previous-generation graphics cards and brings the power of real-time ray tracing and AI to games.
DirectX 12: Power new visual effects and rendering techniques for more lifelike gaming.
NVIDIA Shadowplay Record and share high-quality gameplay videos, screenshots, and livestreams with your friends.
Unique Wing-blade Fans deliver high air pressure, reduced noise levels, IP5X certified dust resistance, and 0dB mode for silent gaming.
MaxContact Technology allows 2X more contact with the GPU chip for improved thermal transfer.
Auto-Extreme Technology uses automation to enhance reliability.
Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages to fuel Turing’s cores.
ASUS FanConnect II equips 2 hybrid-controlled fan headers for optimal system cooling.
GPU Tweak II provides intuitive performance tweaking and thermal controls.
