SG200-50FP-NA Technical Specifications

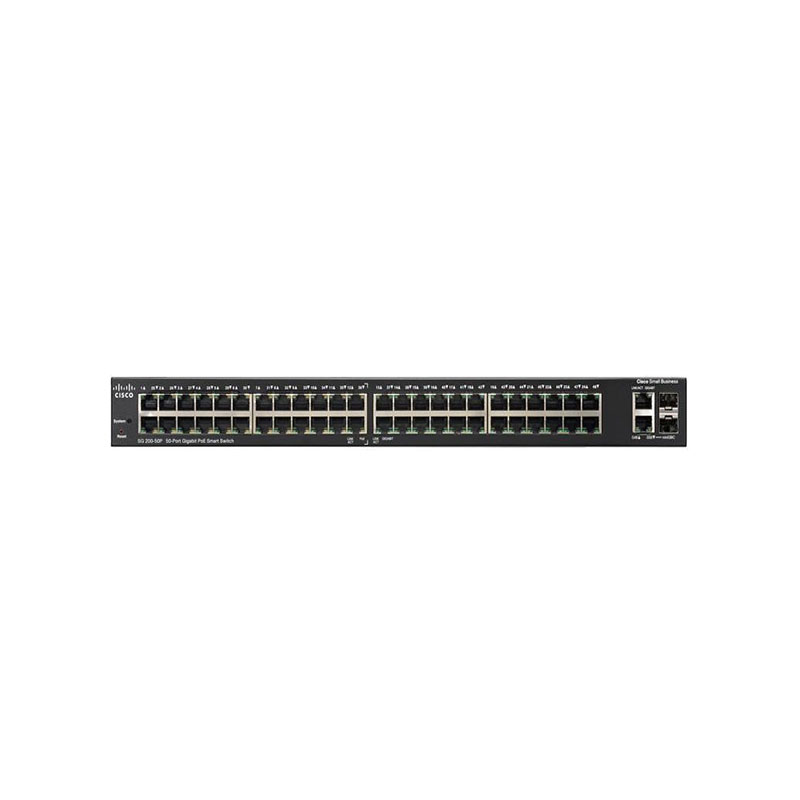

Cisco SG200-50FP Ethernet Switch 50 Ports 10/100/1000Base-T 2 Layer Supported
Manufacturer Part Number: SG200-50FP-NA
Brand Name: Cisco
Product Type: Ethernet Switch
Type: Managed Gigabit Ethernet Switch
Ports: 48 x 10/100/1000Base-T + 2 x combo mini-GBIC
PoE Support: Yes, PoE/PoE+ on all 48 ports
PoE Power Budget: 740W total
Switching Capacity: 104 Gbps
Forwarding Rate: 77.4 Mpps
Layer Support: Layer 2 / Layer 3 Lite (static routing)
Management: Web GUI, SNMP, CLI (limited), Smartport
MAC Address Table: 16K entries
Auto MDI/MDIX: Supported
Auto-Negotiation: Supported
Duplex Mode: Half/Full duplex
Flow Control: IEEE 802.3x compliant
VLAN Support: Up to 256 VLANs
QoS: Traffic prioritization, 802.1p, DSCP
Security: 802.1X authentication, ACLs, DoS prevention
Spanning Tree Protocol: STP, RSTP, MSTP
Jumbo Frames: Up to 9K bytes
