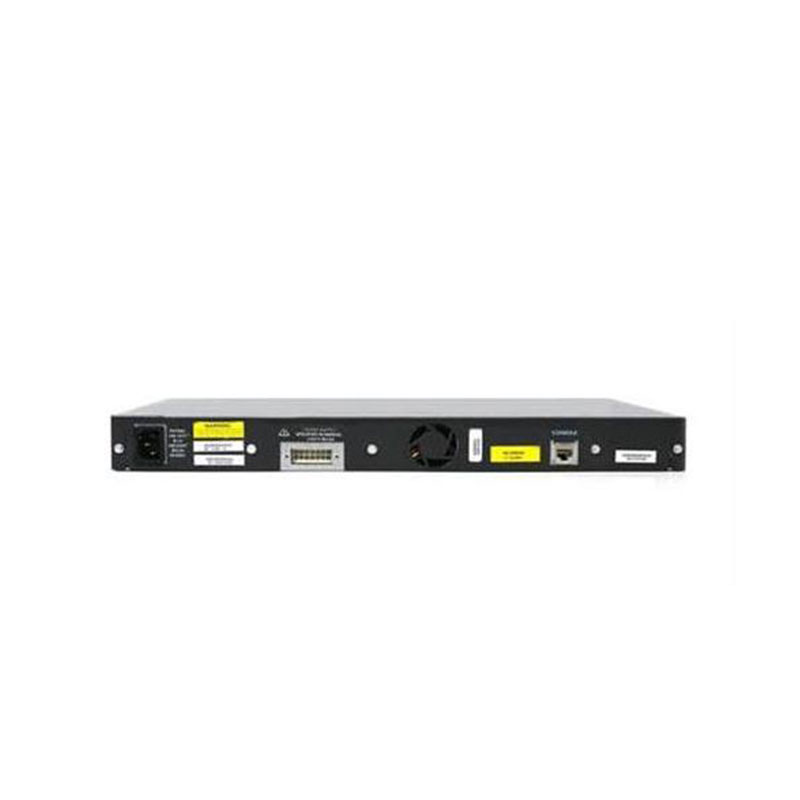

SG500X-24-K9 Technical Specifications
Cisco 24-Port + 4-Port SFP+ Layer 3 Switch
Manufacturer: Cisco
Manufacturer Part Number: SG500X-24-K9
Series: Small Business SG500X
Type: Managed Stackable Gigabit Switch
Ports: 24 x 10/100/1000 RJ-45 Gigabit Ethernet
Uplink Ports: 4 x 10 Gigabit SFP+
Switching Capacity: 128 Gbps
Forwarding Rate: 95.23 Mpps
Layer Support: Layer 2 switching + Layer 3 static/dynamic routing
Stacking Support: Up to 8 units with 40 Gbps stack interconnect
Management: Web-based GUI, CLI, SNMP, RMON
VLAN Support: Up to 4096 VLANs
QoS: Advanced traffic prioritization with 8 priority queues
Security: Port security, ACLs, 802.1X authentication, DoS prevention
MAC Address Table: 16K entries
Jumbo Frames: Up to 10K bytes
Resiliency: STP, RSTP, MSTP, VRRP support
Form Factor: Rack-mountable, 1U
Auto MDI/MDIX: Supported
Duplex Mode: Full/Half auto-negotiation
Energy Efficiency: IEEE 802.3az compliant
