SRT192RMBPUS Technical Specifications

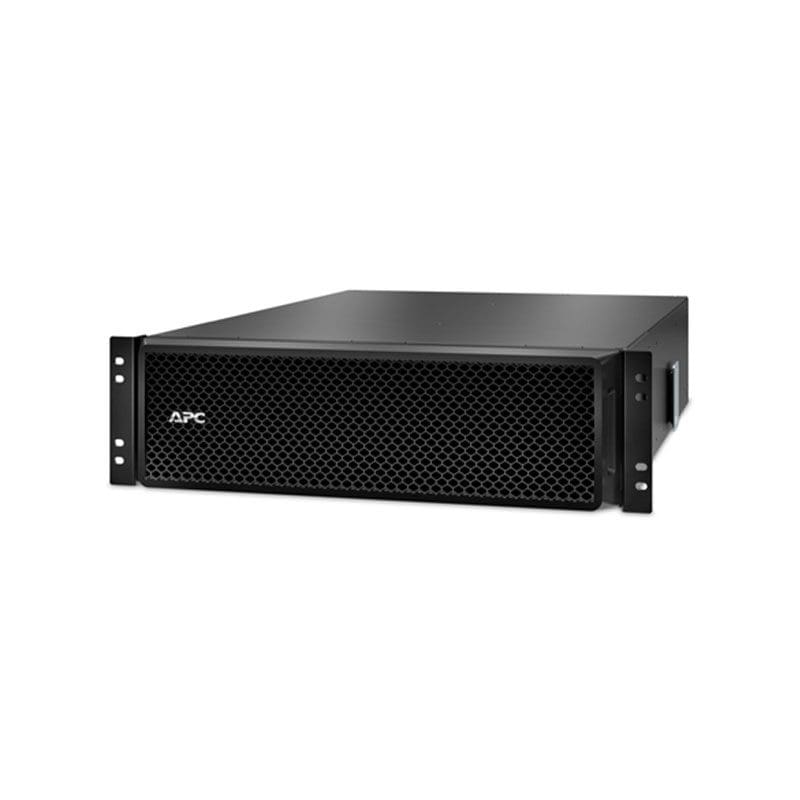

APC Smart-UPS SRT 192V 5kVA and 6kVA RM Battery Pack TAA
Manufacturer :APC
Brand :APC
Product Line :APC Smart-UPS SRT
Model :192V 5000VA and 6kVA RM Battery Pack 192V
Packaged Quantity :1
Output
Battery Output Voltage Batteries & Runtime
Battery type
Maintenance-free sealed Lead acid battery with suspended electrolyte : leakproof
Battery mounting Stand alone battery stack
Expected Battery Life (years) 3 – 5
RBC Quantity 2
Battery Volt-Amp-Hour Capacity 1920
Physical
Maximum Height
5.1inches (130MM, 13.0CM)
Maximum Width
17.0inches (432MM, 43.2CM)
Maximum Depth
26.88inches (683MM, 68.3CM)
Net Weight
200.2lbs. (90.81KG)
Shipping weight
232.1lbs. (105.28KG)
Shipping Height
16.54inches (420MM, 42.0CM)
Shipping Width
23.63inches (600MM, 60.0CM)
Shipping Depth
39.38inches (1000MM, 100.0CM)
Color Black
Units per Pallet 1.0
Environmental
Operating Temperature
32 – 104 °F (0 – 40 °C)
Operating Relative Humidity
0 – 95 (no %
Operating Elevation
0-10000ft (0-3000meters)
Storage Temperature
-15 – 45 °C
Storage Relative Humidity
0 – 95 (no %
Storage Elevation
0-50000ft (0-15000meters)
