UCS-CPU-E5-4667E Technical Specifications

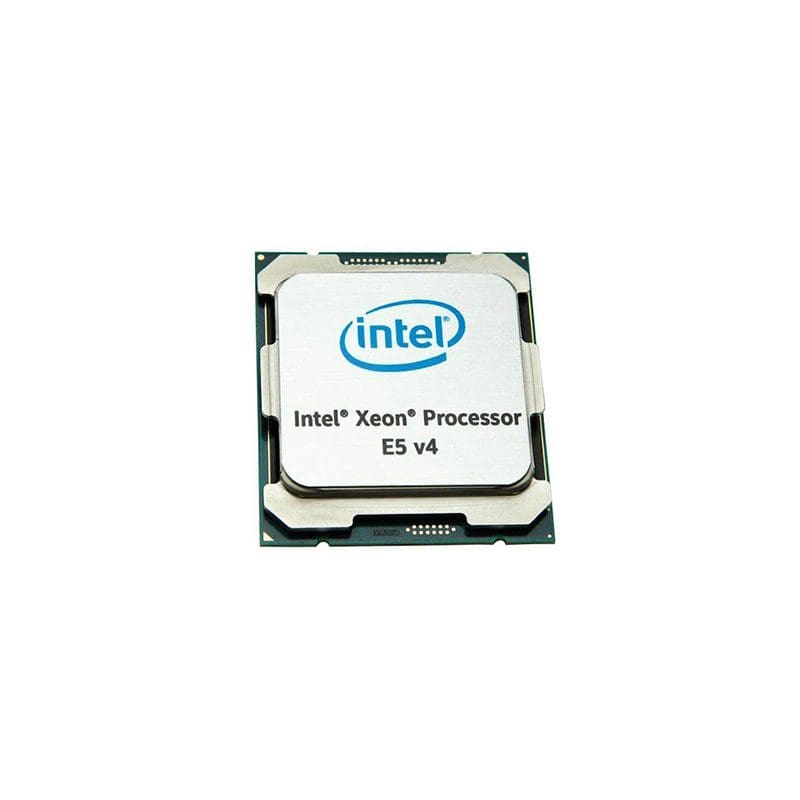

Cisco Intel Xeon 18 Core Processor E5-4667V4 2.20GHz 45MB Cache 9.6 GT/S QPI 135W
General Information
Product Line: Intel Xeon
Product Series: E5-4600v4
Product Model: E5-4667v4
Product Type: Server Processor
Cisco UCS
Technical Information
Processor Manufacturer: Intel
Processor Core: 18 Core
Clock Speed: 2.20 GHz
Over clocking Speed: 3 GHz
Quick Path Interconnect: 9.60 GT/s
Direct Media Interface: 5 GT/s
L2 Cache: 4.50 MB
L3 Cache: 45MB Cache
64-bit Processing: Yes
Process Technology: 14 NM
Processor Socket: Socket LGA 2011-3
Thermal Design Power: 135 W.
