UCS-CPU-E52630LB Technical Specifications

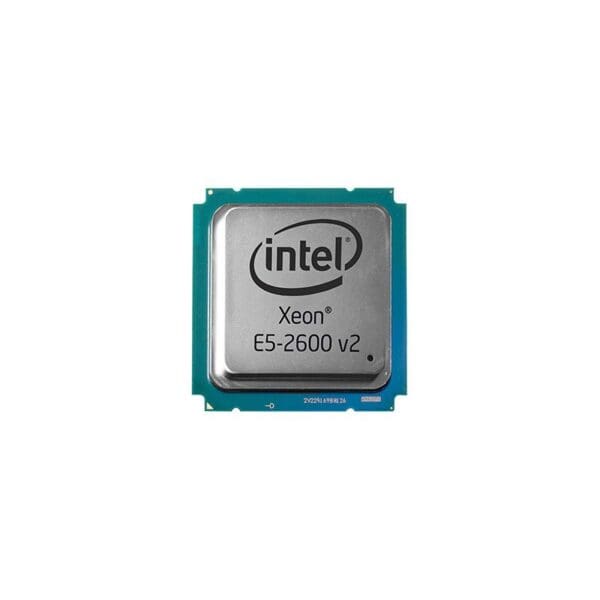

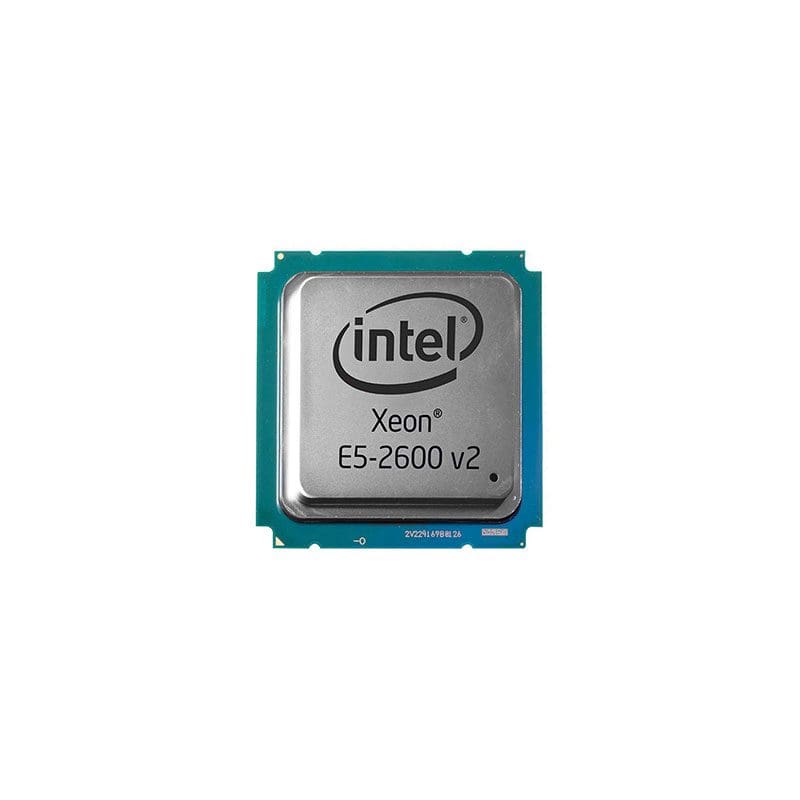

Cisco 2.40GHz 7.20GT/s QPI 15MB L3 Cache Intel Xeon E5-2630L v2 6 Core Processor Upgrade
Brand Intel
Part No. UCS-CPU-E52630LB
Processor Type Server Processor
Processor Family E5-2600v2
Series Intel Xeon Processor
Core Model Type/ProcNo. E5-2630Lv2
Processor Code Name Ivy Bridge EP
Core Stepping S1
Manufacturing Technology 22 nm
CPU ID String 306E4
Cisco UCS
# of 6 Core
# of Threads 12
Clock Speed 2.40 GHz
L3 Cache Size 15 MB
Front Side Bus / QuickPath Interconnect 7.20 GT/s
Thermal Power 60 Watts
VID Voltage Range 0.65-1.3V
CPU Socket Type LGA 2011
