UCS-FI-6296-PS-BUN Technical Specifications

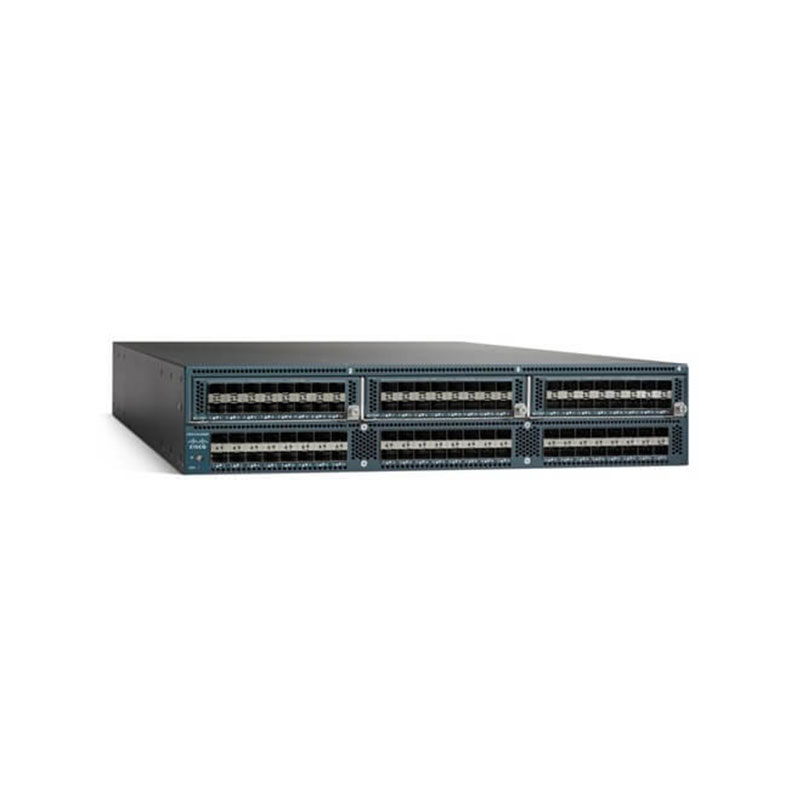

Cisco Ucs 6 Unit Switch 48 ports managed Rack-mountable 2U for Disti Stocking Fiber Channel
Manufacturer: Cisco
Manufacturer Part Number: UCS-FI-6296-PS-BUN
Brand Name: Cisco
Device Type Switch: 48 ports – managed
Key Feature
Enclosure Type: Rack-mountable 2U
Subtype: 10 Gigabit Ethernet
Ports 18 x 10 Gigabit / FCoE SFP+
Performance Throughput: 1920 Gbps
MAC Address Table Size: 32000 entries
Jumbo Frame Support: 9216 bytes
Remote Management :Protocol RMON
Features
Expansion / Connectivity
Interfaces 1 x 1000Base-T – RJ-45 – management ¦ 48 x SFP+
Expansion Slots 3 (total) / 3 (free) x expansion slot
Environmental Parameters
Max Operating Temperature: 104 °F
Max Storage Temperature: 158 °F
Humidity Range Storage: 5 – 95% (non-condensing)
Power
Power Device Internal power supply: – hot-plug
Installed Qty 2 (installed) / 2 (max)
Power Redundancy: Yes
Power Redundancy: Scheme 1+1
Voltage Required: AC 120/230 V (50/60 Hz)
