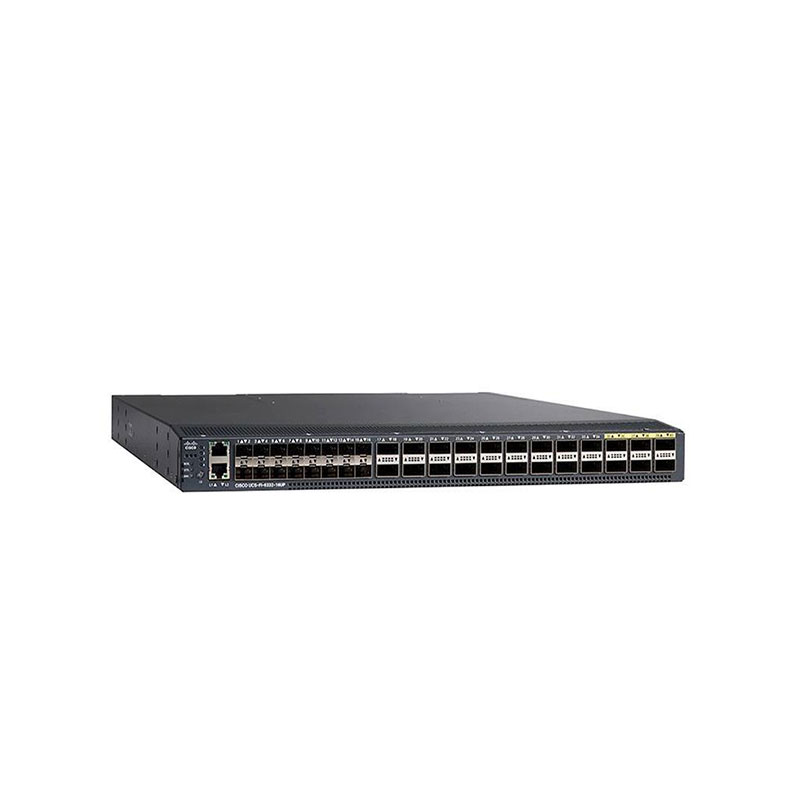

UCS-FI-6332-16UP Technical Specifications
Cisco -24-Port QSFP+ + 16 x SFP+ Network Switch
Manufacturer: Cisco
Manufacturer Part Number: UCS-FI-6332-16UP
Type: Network Switch / Fabric Interconnect
Ports: 24 x QSFP+ + 16 x SFP+
Uplink Ports: QSFP+ for 40GbE, SFP+ for 10GbE
Switching Capacity: 1.28 Tbps
Forwarding Rate: 952 Mpps
Layer Support: Layer 2/3
Management: UCS Manager, CLI, SNMP v1/v2/v3
VLAN Support: Up to 4,094 VLANs (802.1Q)
QoS: 802.1p, DSCP, traffic shaping
Security: ACLs, 802.1X authentication, port security
Stacking Capability: Supports Fabric Interconnect clustering
MAC Address Table: 64K entries
Jumbo Frames: Up to 9K bytes
Redundancy: Redundant power supplies supported
Power Supply: Internal, hot-swappable
Cooling: Active cooling with redundant fans
Form Factor: 1U Rack-mountable
Rack Mount: Supported
Auto MDI/MDIX: Supported
